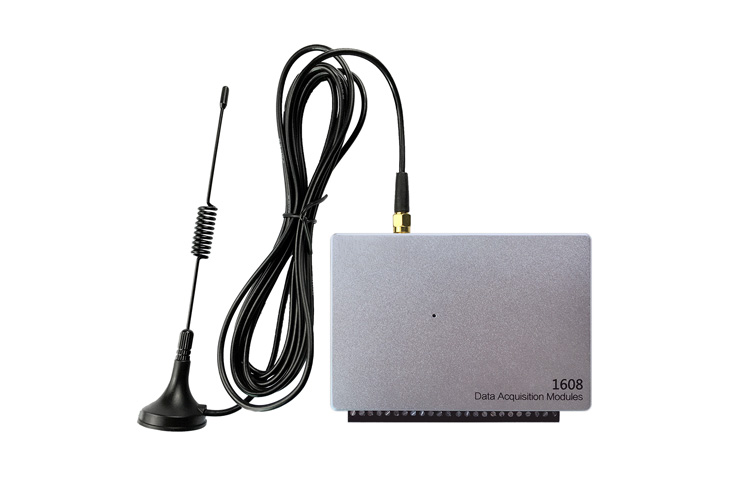

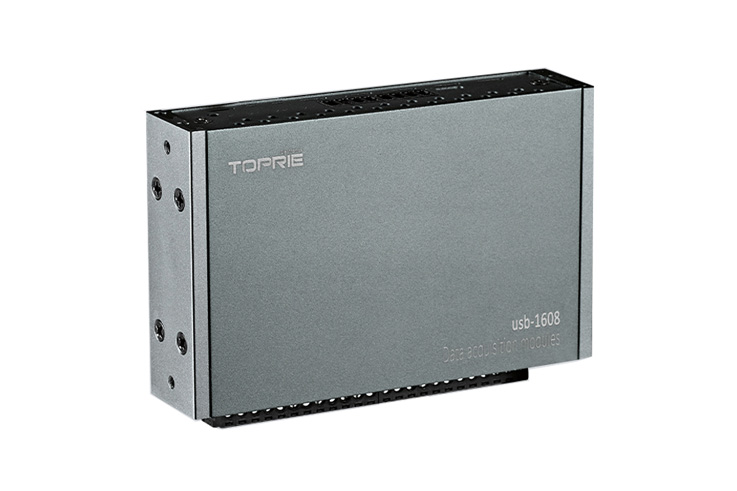

USB-1608 Temperature DAQ Module

Overview Specifications Ordering Resources

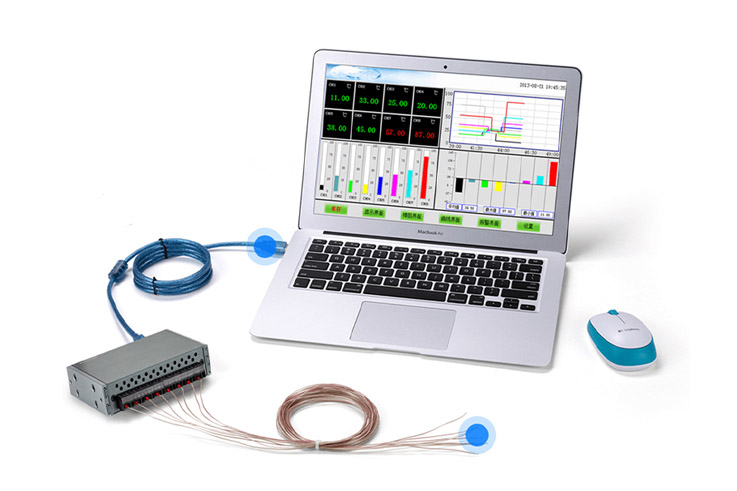

Toprie USB-1608 Multi-channel Temperature Data Acquisition Module can connect a variety of temperature probe sensors. Used in conjunction with computer host computer software, it can realize the functions of display, recording, monitoring, curve display, list generation and other functions of different on-site temperatures.

The USB-1608 module is mainly used in electronic testing, biopharmaceuticals, food processing, heat treatment and other fields. It adopts industrial-grade RS485 and USB-TYPE-C interface, compact and portable, easy to install and use.

Key Features

Support acquisition of multiple thermocouple and thermal resistance

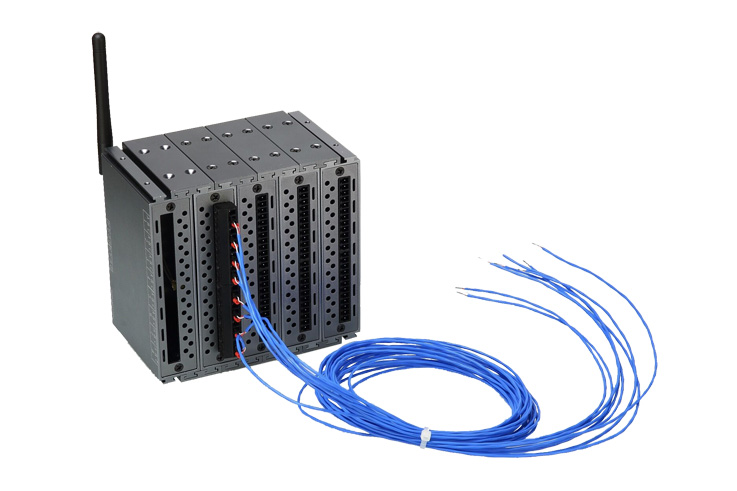

8 channels per unit, support extended to 256 channels

1s or optional 0.1s high-speed sampling

High precision input measurement

Perfect isolation protection, safer data acquisition

Small and portable, safe and reliable, easy to install

Using ARM microprocessor, can realize multi-channel signal acquisition, recording, display and alarm at the same time

Input Signals	Thermocouple: K, R, B, N, E, T, J, S, WRE5-26, WRE3-25 Thermal resistance: pt1000, pt100, cu50
Number of Channels	8 – 256
Sampling	1S or optional 0.1S
Isolation Voltage	• Between power supply: 3000V DC • Between channels: 400V/AC/DC
Fault and Overvoltage Protection	Maximum withstand voltage ±15V
Input Resistance	> 2M (voltage type signal), < 50Ω (current type signal)
Temperature Drift	± 25PPM/°C
Year Drift	± 100PPM/Y
Electrostatic Protection	2000V
Communication Parameter	Baud rate 9600bps/115200bps, data bit 8, check bit N (none), stop bit 1
Power Supply	DC +8V to +28VDC (terminals), +5V (USB)
Power Protection	Power reverse protection, wrong connection protection
Power Consumption	0.3W
Operation Environment	-30°C to +80°C, 0 – 100% RH (non-condensing)
Dimension	117.6 × 76.5 × 25.7 mm
Protection Level	IP40 & Fire-proof level UL94

Main Machine

Module No.	Item	Description
USB-1608	Temperature DAQ Module	8 channels per unit (maximum 32 modules can be assembled）

Document

USB-1608 Temperature DAQ Module Datasheet
