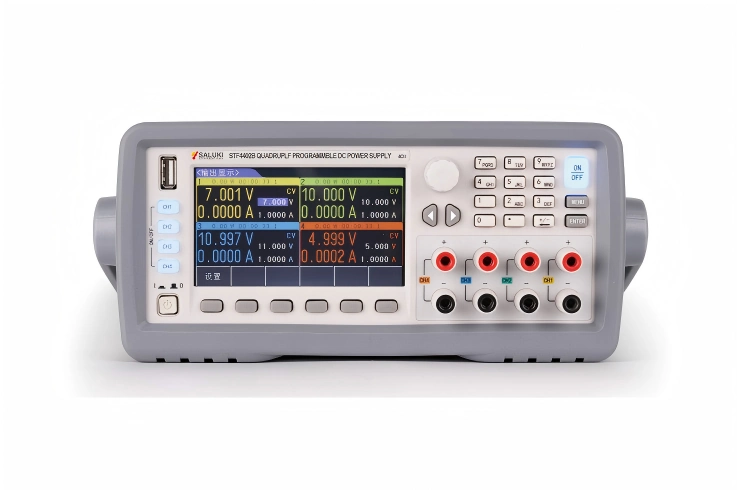

STF4402B Programmable DC Power Supply

STF4402B is one quadruple output programmable DC power supply. It has the functions of serial, parallel and synchronous output between channels, and the output parameters of all channels are displayed on the same screen, which is more convenient and intuitive to use.

STF4402B power supply can be used in various areas, such as R&D and design verification common test, production line table routine testing and maintenance, automated device integration testing, solar photovoltaic simulation test, new power car simulation test, and teaching laboratory etc.

** Standard Lead Time: within 4 weeks **

Key Features

Quadruple channel output and linear design

High precision and high stability, low ripple and low noise

Programmable output of voltage and current

Support series, parallel or synchronous output between channels

Simultaneously display of voltage, current, power and timing output time for four-channel

Remote measurement function, compensation for line voltage drop

Fully isolated circuit and support positive and negative reverse connection

Software control and detection via computer

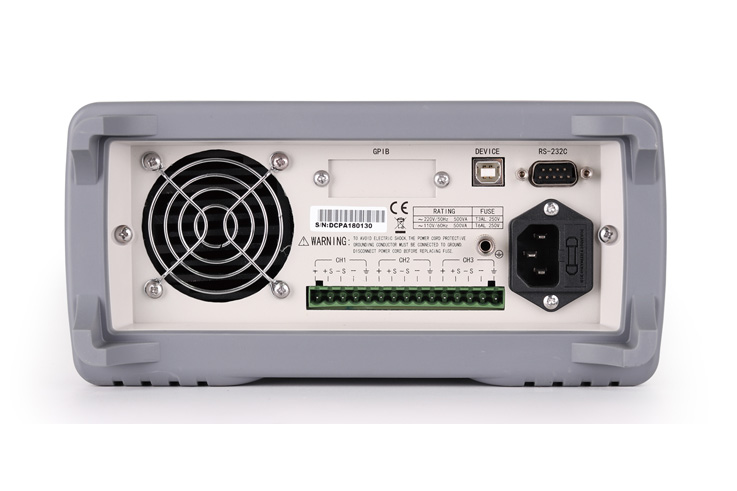

1/2 2U super mini size and output and sampling terminal on the front and rear panel

Module

STF4402B

Number of Channel

4

Output Rating

Channel 1-2:0-30V/0-3A/90W

Channel 3: 0-10V/0-3A/30W

Channel 4: 0-5V/0-1A/5W

Load Regulation

•   Voltage: ≤0.01%+3mV

•   Current: ≤0.01%+3mA

Power Regulation

•   Voltage: ≤0.01%+3mV

•   Current: ≤0.01%+3mA

Programming Resolution

•   Voltage: 1mV

•   Current: 0.1mA

Readback Value Resolution

•   Voltage: 1mV

•   Current: 0.1mA

Ripple and Noise (20Hz-20MHz)

Voltage 1mVrms/3mVp-p, current 3mArms

Timer

0.1 – 99999.9 seconds

Memory

40 groups of settings files / channels

Dimension

Rackmount: 215 (W) × 88 (H) × 473 (D) mm

Standard: 235 (W) × 111 (H) × 501 (D) mm

Weight

12kg

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
STF4402B DC Power Supply 0-30V/0-3A/90W*2, 0-10V/0-3A/30W*1, 0-5V/0-1A/5W*1, resolution 1mV/0.1mA

Options

Module No. Item Description
SBF0035D High Current Test Cable For high current measurement, black color
SBF0035E High Current Test Cable For high current measurement, red color
