STB8883S4-5/STB8883S8-5 Impulse Winding Tester

Overview Specifications Ordering Resources

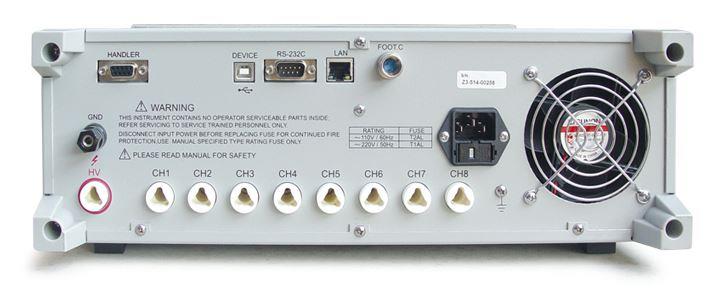

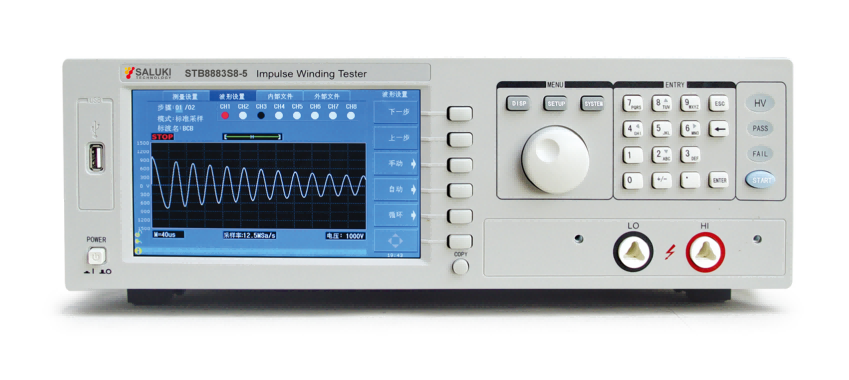

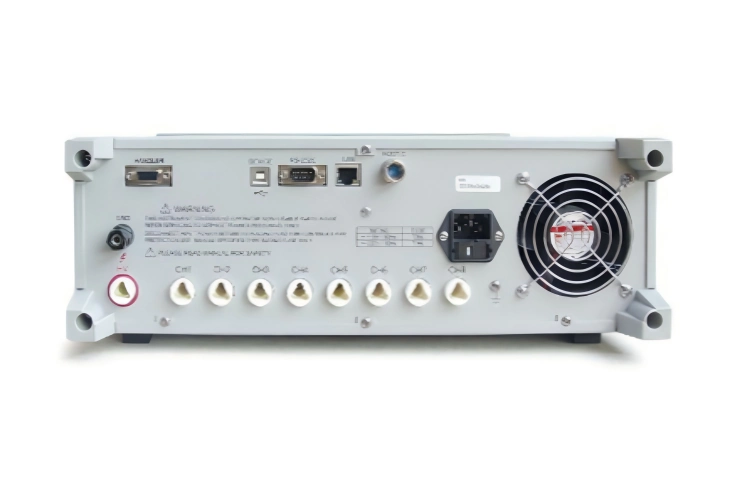

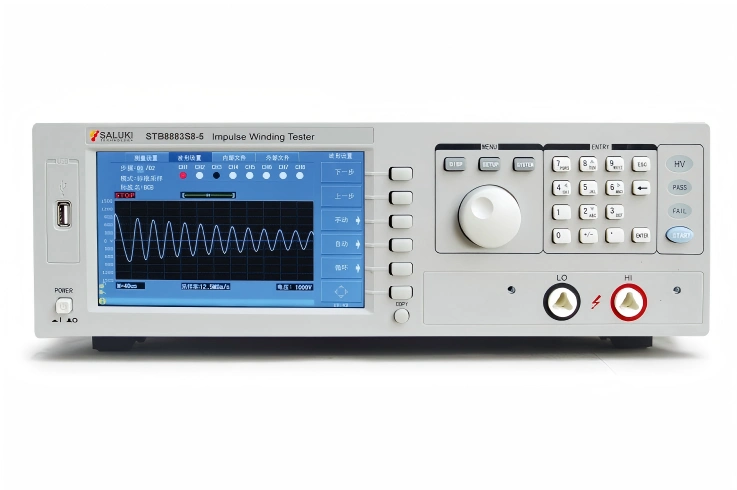

According to the output number of channels, STB8883 series is consist of 2 models: STB8883S8-5 and STB8883S4-5. STB8883S8-5 is the ideal product for measurements of multiphase coils. The 8 channel of STB8883S8-5 can be programmed and configured as voltage high-terminal, voltage low-terminal and OFF. Any combination of the configuration condition of the 8 channels and maximum 20 test procedures can be achieved. Also, it can test the coils successively in 8 channels. STB8883S4-5 is provided with 4 channels. It is especially developed on the basis of the 8 channels of STB8883S8-5 for customers who need less sweep channels. USB Host, RS232C, USB Device and LAN interface are provided in STB8883 series products for your quick save of the waveforms and remote control of the instrument.

** Standard Lead Time: within 4 weeks **

Key Features

The first provider of impulse winding tester from low voltage of 30V to high voltage of 10kV, single channel to multichannel in this industry (Max.:8 channels)

First winding tester compatible with LXI standard

Impulse voltage of 100V~5000V

Two models of 4-channel and 8-channel4 for selection

Each channel can be programmed and controlled as high-terminal, low-terminal and OFF

Up to 200Msps waveform sampling rate

Maximum measuring speed: 6meas/sec

High-fidelity corona extraction algorithm (patent technology)

Multi-sample average, average processing of 32 standard waveforms

Module

STB8883S4-5

STB8883S8-5

Impulse Voltage

100V-5000V10V steps

Voltage Accuracy

±(5% set value +15V)

Readback Accuracy

±(5% actual value +15V)

Channels

STB8883S4-5: 4

STB8883S8-5: 8

Inductance Test Range

≥10uH

Impulse Energy

Max.: 0.25 Joule

Test Speed

6 times/second (single channel, single step)

Pulses Applied

Max.: 32

Input Impedance

5MΩ

Power Supply

Power supply: 220V ±10%, 50Hz/60Hz ±5%

Power Consumption: ≤200VA

Main Machine

Module No.	Item	Description

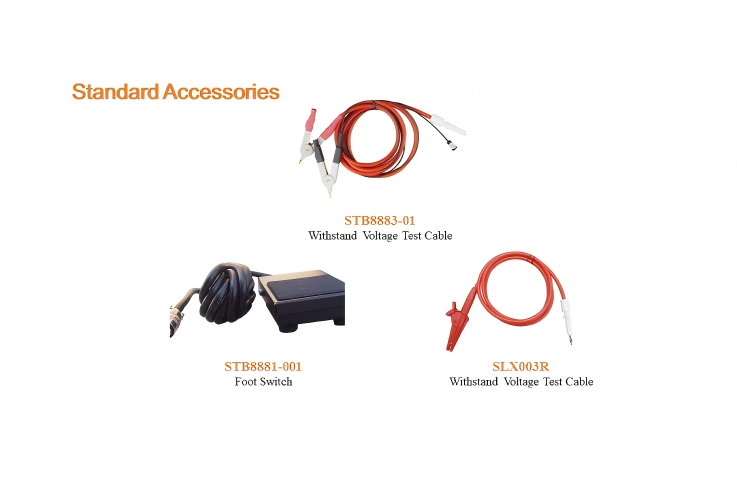

STB8883S4-5	Impulse Winding Tester	Pass/Fail sound/light alarm output 4 Channels, including Withstand Voltage Test Cable and Foot Switch.
STB8883S8-5	Impulse Winding Tester	Pass/Fail sound/light alarm output 8 Channels, including Withstand Voltage Test Cable and Foot Switch.

Options

Module No.	Item	Description
SBF0052	Test Fixture	/

Document

STB8883S4-5/STB8883S8-5 Impulse Winding Tester Datasheet
