STB8829X Series Precision LCR Meter

Overview Specifications Ordering Resources

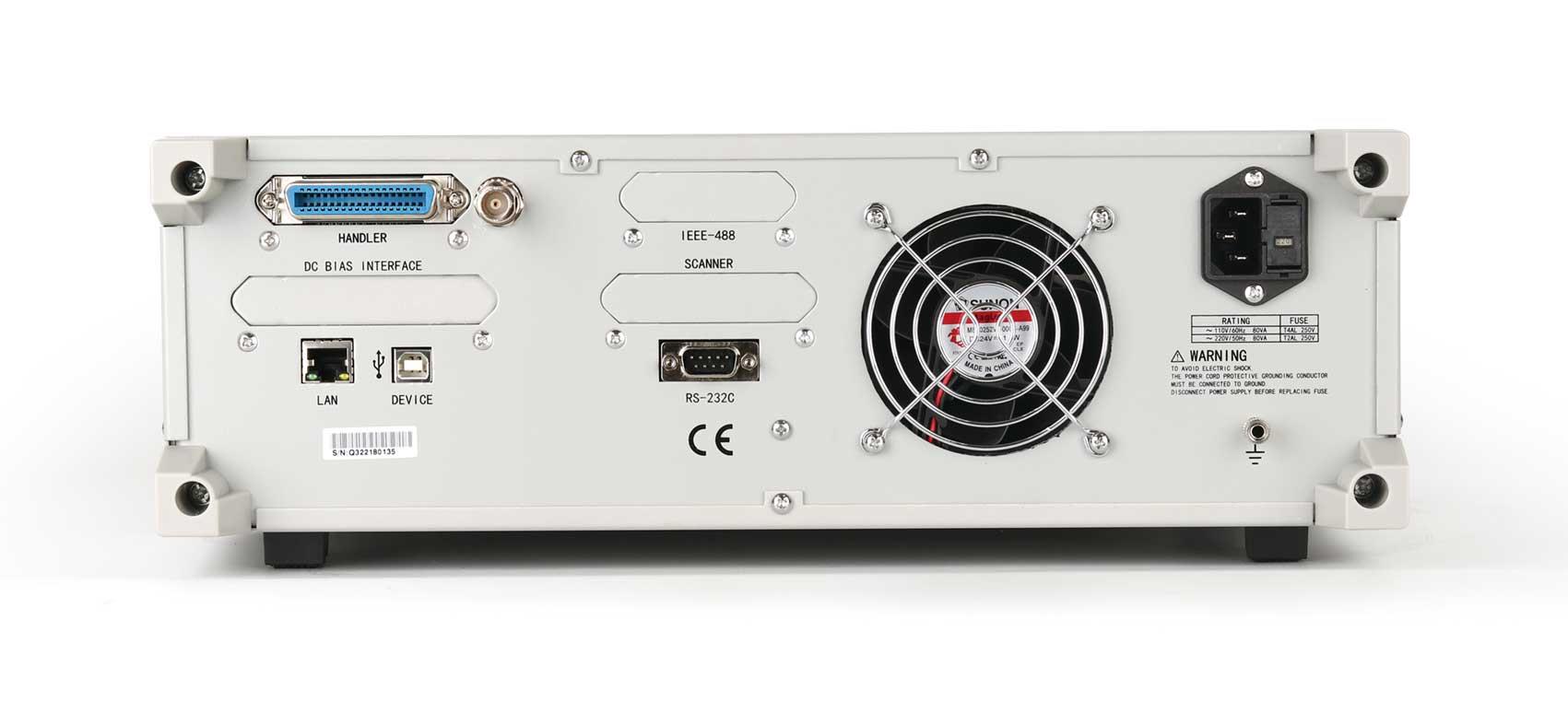

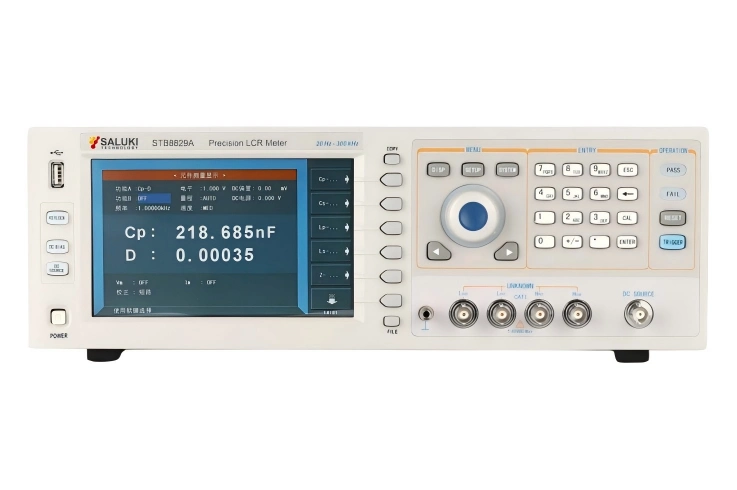

By dint of leading impedance measurement technology and rich R&D experience, Saluki continuously introduces representative impedance measurement product — STB8829 series automatic component analyzer is another excellent product we have produced. STB8829 series automatic component analyzer possesses a higher test speed, a more comprehensive analysis function and friendly human-computer interactive experience by adopting the latest high-speed processor and a new software system. Well-designed measuring circuit and optimized algorithms further enhance the test stability of low-D capacitance and high-Q inductors.

** Standard Lead Time: within 4 weeks **

Key Features

Test signal frequency of 300kHz, resolution of 1mHz, 5-digit frequency input

Maximum test speed: 9ms/time

Simultaneous display of 4 kinds of test parameters

201-point list sweep function

Continuous curve scanning/graphical analysis function

Internal storage of 100 sets of LCRZ setting files and 10 sets of GIF image

GIF image and CSV data files can be saved to USB storage directly

Frequency Range

STB8829A: 20Hz – 300kHz
STB8829C: 20Hz – 1MHz
Basic Accuracy

0.05%
AC Level

Voltage: 5mV—10Vrms

Current: 50μA—100mA
DC bias voltage source

Voltage: 0V— ±10V

Current: 0mA—±100mA
AC Source impedance

ISO ON: 100Ω

ISO OFF: 30Ω，50Ω，100Ωselectable
DCR Source impedance

30Ω，50Ω，100Ωselectable

Main Machine

Module No. Item Description

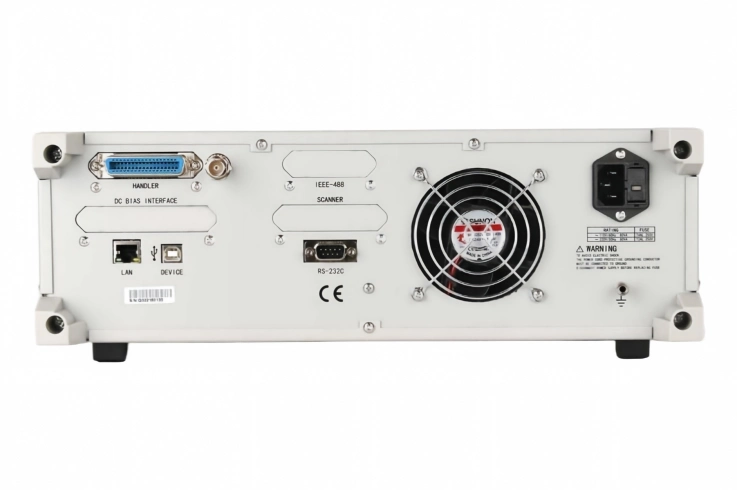

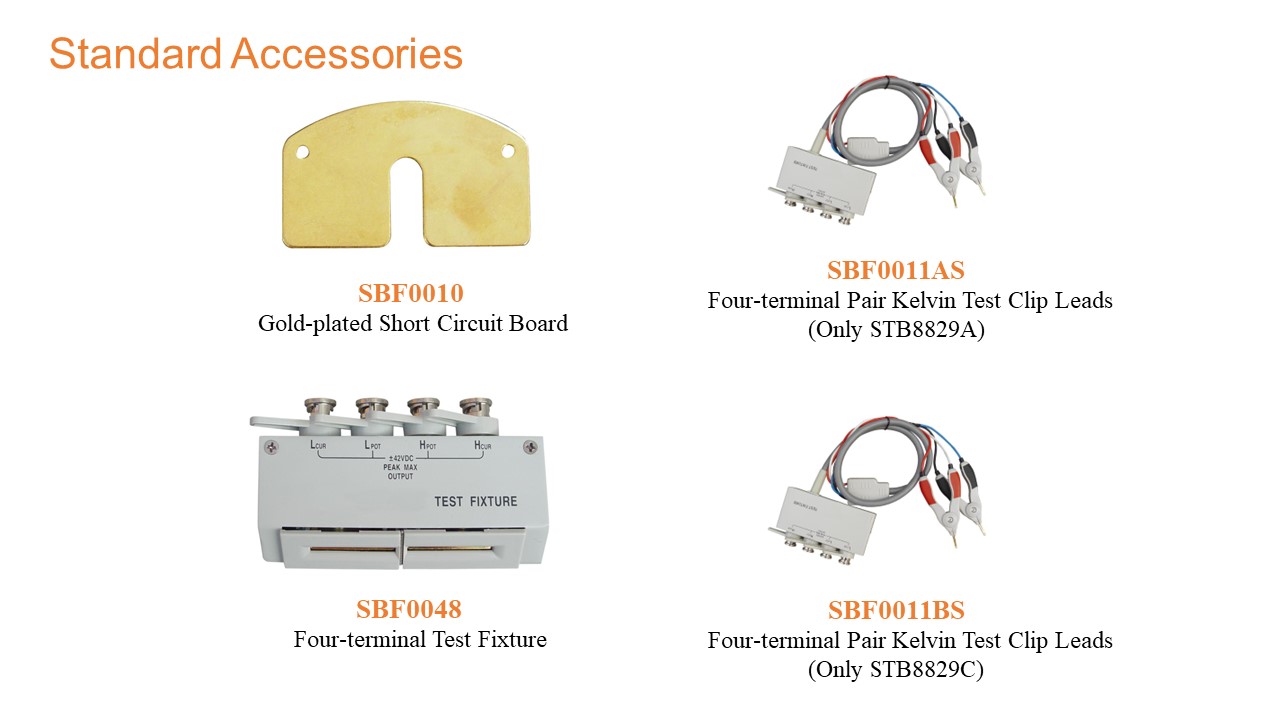

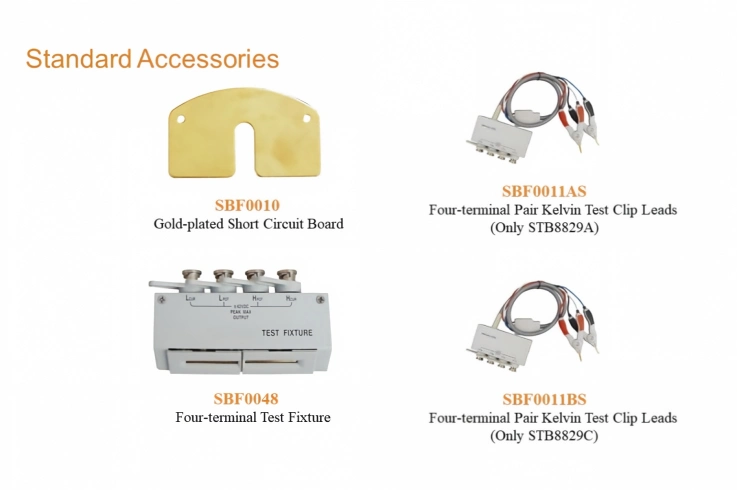

STB8829A Precision LCR Meter Frequency range: 20Hz to 300kHz, including Four-terminal Pair Kelvin Test Clip Leads, short circuit and Kelvin test lead with box four-terminal insulation and lock.
STB8829C Precision LCR Meter Frequency range: 20Hz to 1MHz, including Four-terminal Pair Kelvin Test Clip Leads, short circuit and Kelvin test lead with box four-terminal insulation and lock.
