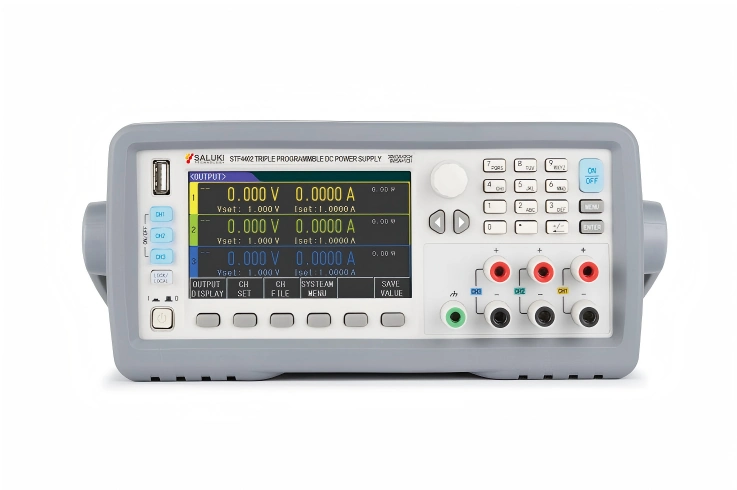

STF4400 Series Programmable DC Power Supply

STF4400 series multiple output programmable DC power supply cover 4 models (15W-180W), each power supply has the function of triple voltage and triple current output ranges. The whole series of power supplies have the functions of serial, parallel and synchronous output between channels, and the output parameters of all channels are displayed on the same screen, which is more convenient and intuitive to use.

STF4400 series can be used in various areas, such as R&D and design verification common test, production line table routine testing and maintenance, automated device integration testing, solar photovoltaic simulation test, new power car simulation test, and teaching laboratory etc.

** Standard Lead Time: within 4 weeks **

Key Features

Triple channel output and linear design

High precision and high stability, low ripple and low noise

Programmable output of voltage and current

Support series, parallel or synchronous output between channels

Simultaneously display of voltage, current, power and timing output time for three-channel

Remote measurement function, compensation for line voltage drop

Fully isolated circuit and support positive and negative reverse connection

Software control and detection via computer

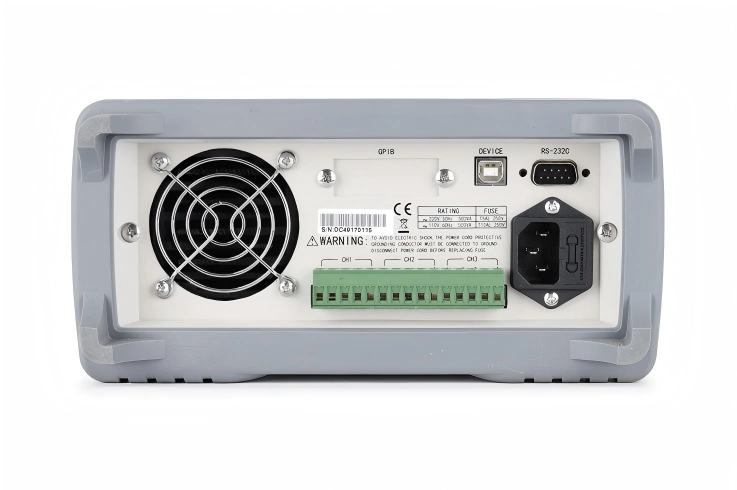

1/2 2U super mini size and output and sampling terminal on the front and rear panel

Module

STF4402A, STF4402, STF4412, STF4413

Number of Channel

3

Output Rating

STF4402A: 0-30V/0-3A/90W*2, 0-5V/0-3A/15W*1

STF4402: 0-30V/0-3A/90W*2, 0-6V/0-5A/30W*1

STF4412: 0-30V/0-6A/180W*2, 0-6V/0-5A/30W*1

STF4413: 0-60V/0-3A/180W*2, 0-6V/0-5A/30W*1

Load Regulation

•   Voltage: ≤0.01%+3mV

•   Current: ≤0.1%+3mA (STF4402A), ≤0.01%+3mA (STF4402/6412/6413)

Power Regulation

•   Voltage: ≤0.01%+3mV

•   Current: ≤0.1%+3mA (STF4402A), ≤0.01%+3mA (STF4402/6412/6413)

Programming Resolution

•   Voltage: 10mV (SH6402A), 1mV (STF4402/6412/6413)

•   Current: 1mA (SH6402A), 0.1mA (STF4402/6412/6413)

Readback Value Resolution

•   Voltage: 10mV (SH6402A), 1mV (STF4402/6412/6413)

•   Current: 1mA (SH6402A), 0.1mA (STF4402/6412/6413)

Ripple and Noise (20Hz-20MHz)

STF4402A: voltage 1mVrms/3mVp-p, current 3mArms

STF4402: voltage 1mVrms/4mVp-p, current 5mArms

STF4412: voltage 1mVrms/4mVp-p, current 4mArms

STF4413: voltage 1mVrms/4mVp-p, current 5mArms

Timer

0.1 – 99999.9 seconds

Memory

40 groups of settings files / channels

Dimension

Rackmount: 215 (W) × 88 (H) × 457 (D) mm

Standard: 235 (W) × 105 (H) × 487 (D) mm

Weight

13kg

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
STF4402A DC Power Supply 0-30V/0-3A/90W*2, 0-5V/0-3A/15W*1, resolution 10mV/1mA
STF4402 DC Power Supply 0-30V/0-3A/90W*2, 0-6V/0-5A/30W*1, resolution 1mV, 0.1mA
STF4412 DC Power Supply 0-30V/0-6A/180W*2, 0-6V/0-5A/30W*1, resolution 1mV, 0.1mA
STF4413 DC Power Supply 0-60V/0-3A/180W*2, 0-6V/0-5A/30W*1, resolution 1mV, 0.1mA

Options

Module Item Description
SBF0035D High Current Test Cable For high current measurement, black color
SBF0035E High Current Test Cable For high current measurement, red color
