The STA993X series is a 6 1/2 -bit low noise precision power supply that also has measurement capabilities, with a fixed measurement resolution of 4 1/2 bits. The instrument sets the output voltage/current or measures voltage/current/resistance through the touch screen, front panel keys and knob. Supports sweep output, pulse output, arbitrary waveform generation, trace buffer, math expressions, and graph drawing. The STA993X can be used as a DC (constant) voltage/current source, a swept voltage/current source, a pulse generator, an arbitrary waveform generator, and a multimeter.

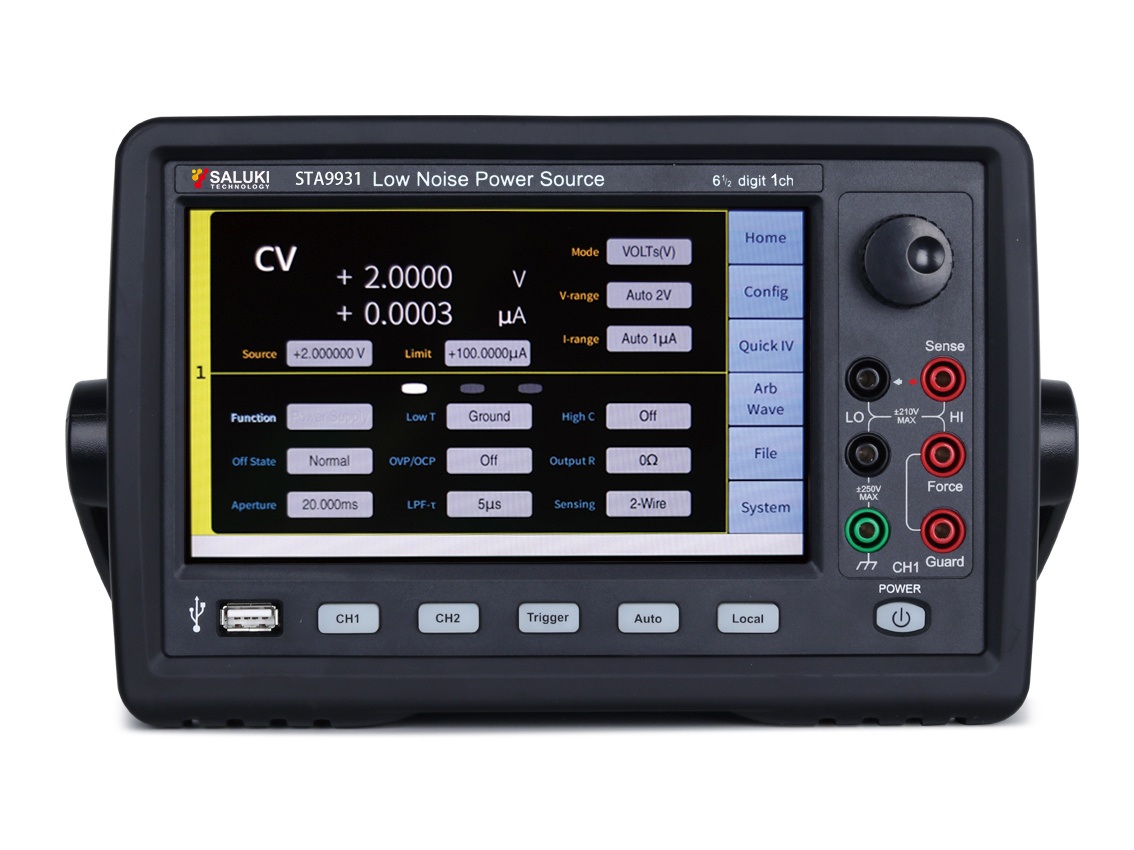

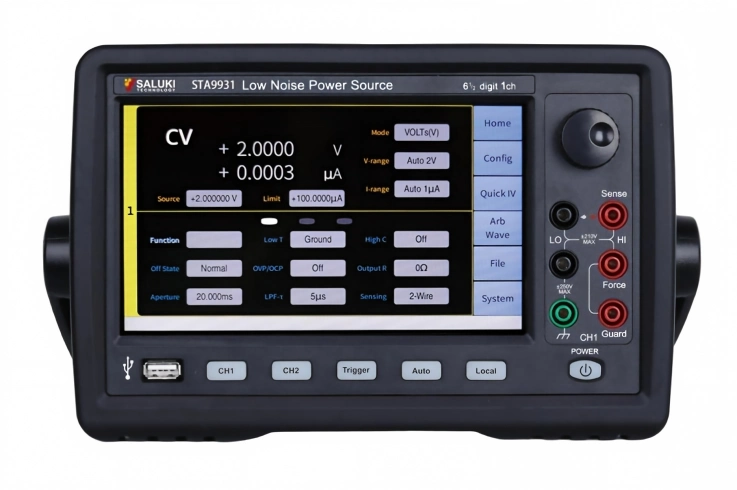

STA993X Series Low Noise Precision Power Supply
Key Features
7-inch capacitive touch screen with 800 x 480 resolution
Linux operating system, Chinese and English interface
Four-quadrant precision power output
Single/dual channel output and measurement
Up to ±210V DC voltage, ±3A DC current/±10.5A pulse
10fA/0.1μV minimum output resolution (6 1/2 bits)
1pA/10μV minimum measurement resolution (4 1/2 bits)
Supports voltage, current, resistance, and power measurements
Four basic modes of voltage source, current source, voltmeter, and ammeter
Minimum sampling interval 1μs
Supports DC, pulse, scanning and list outputs
Pulse output with a minimum pulse width of 50 μs
1mHz-10kHz arbitrary waveform generation and list scan function (minimum 1μs interval)
Flexible programmable output resistance function
Math operation function, sliding average filter function, deviation deduction function
14-speed sorting function with Grading and Sorting modes
| Model | STA9931, STA9932 |
||||||||
| Display | 7-inch touch screen 800 x 480 |
||||||||
| Key Parameters | |||||||||
| Channels | STA9931: 1 STA9932: 2 |
||||||||
| Max Output |
|
||||||||
| Power Supply |
|
||||||||
| Measurement |
|
||||||||
| Voltage Range | 0.2V-200V |
||||||||
| Min. Interval Time | 1μs |
||||||||
| Note: | Please refer to the datasheet for detailed parameters. |
||||||||
Main Machine
| Module No | Item | Description |
| STA9931 | Low Noise Power Supply | Dual channel output and measurement; ±210V/±3A DC; Pulse ±10.5A； 10fA/0.1μV Output resolution (6 1/2 )； 1pA/10μV measurement resolution (4 1/2) |
| STA9932 | Low Noise Power Supply | Single channel output and measurement; ±210V/±3A DC; Pulse ±10.5A； 10fA/0.1μV Output resolution (6 1/2 )； 1pA/10μV measurement resolution (4 1/2) |

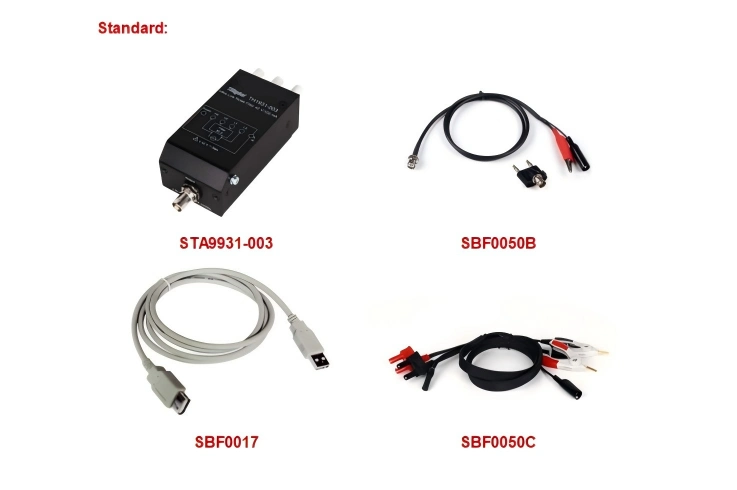

| Standard Accessories | Item | Description |
| STA9931-003 | Ultra low noise filter (42V/105mA) | |
| SBF0050B | Test cable at both ends | |
| SBF0017 | USB Device connection cable | |
| SBF0050C | Four-terminal test cable (five-wire system) |

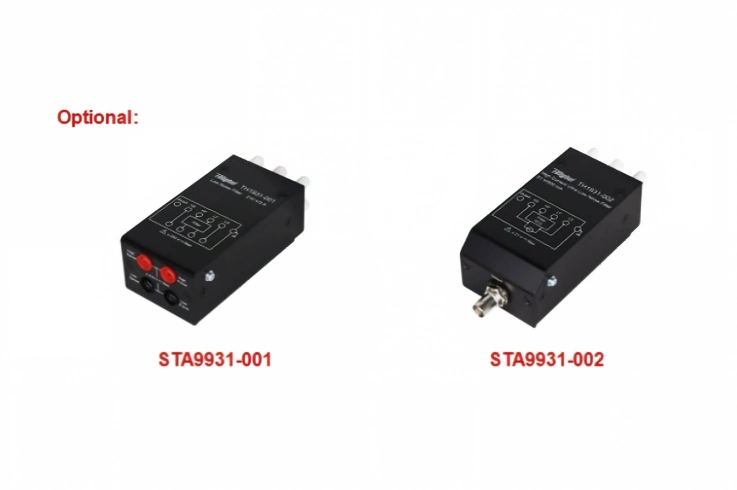

Options
| Module No | Item | Description |
| STA9931-001 | Low noise filter (210V/3A) | |
| STA9931-002 | High current ultra low noise filter (21V/500mA) |
