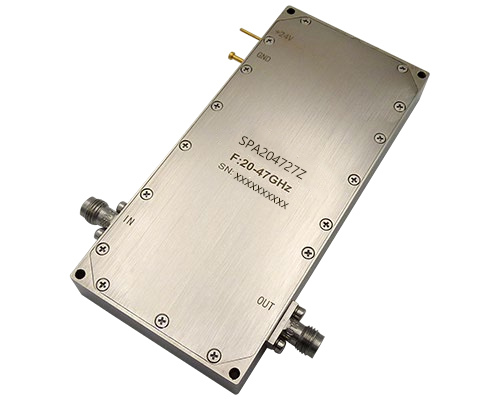

SPA204727Z is a wide band power amplifier which gain:35dB Typical, psat: 29dBm Typical and supply voltage: +24V @ 700mA.
SPA204727Z Wide Band Power Amplifier
Key Features
Frequency Range: 20 to 47GHz
Wide Band Power Amplifier
Gain: 35dB Typical
Psat: 29dBm Typical
Supply Voltage: +24V @ 700mA
-
Gain @+25℃
-
Input VSWR @+25℃
-

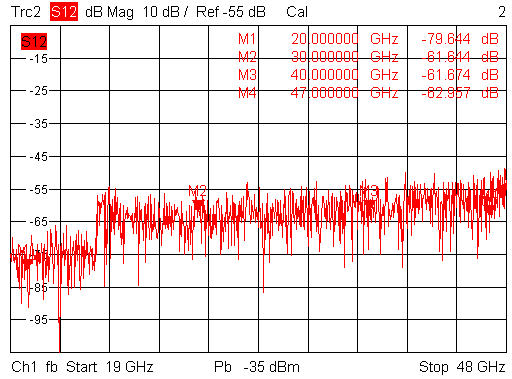

Isolation @+25℃
-
Gain @-40℃
-
Input VSWR @-40℃
-
Isolation @-40℃
-
Gain @+85℃
-
Input VSWR @+85℃
-
Isolation @+85℃
| Frequency Range | 20 to 47GHz |
| Gain | 43dB Typical(20-30GHz) 35dB Typical(30-40GHz) 33dB Typical (40-47GHz) |
| Gain Flatness | ±8.0Typical(20-30GHz) ±2.5Typical(30-40GHz) ±2.0Typical(40-47GHz) |
| Gain Variation Over Temperature (-40℃~+85℃) | ±3.0 dB |
| Input VSWR | 1.6:1Typical(20-30GHz) 1.8:1Typical(30-40GHz) 1.8:1Typical(40-47GHz) |
| Output 1dB Compression Point (P1dB) | 29dBm Typical(20-30GHz) 28dBm Typical(30-40GHz) 25dBm Typical(40-47GHz) |
| Saturated Output Power (Psat) | 29dBm Typical(20-30GHz) 29dBm Typical(30-40GHz) 26dBm Typical(40-47GHz)
|
| Supply Current (Idd) @+24V | 700 mA |
| Fan Supply Current (Idd) @+24V | 400 mA |
| Weight | Net: 10.85 Max. ounces Including Heat Sink: 58 Max. ounces |
| Input / Output Connectors | 2.4mm-Female(2.92mm female optional) |
| Material | Copper |
| Finish | Nickel Plated |
| Operational Temperature | -40ºC~+85ºC |
| Storage Temperature | -50ºC~+105ºC |
| Altitude | 30,000 ft. (Epoxy Sealed Controlled environment) 60,000 ft. 1.0psi min (Hermetically Sealed Un- controlled environment) (Optional) |
| Vibration | 25g RMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
Main Module
| Module No. | Item | Description |
