SPA0P020149Z is a 80W broadband high power amplifier module which gain: 50dB Typical, psat: 50dBm Typical, and supply voltage: +28 V.
SPA0P020149Z 80W Broadband High Power Amplifier Module
Key Features
Frequency Range: 20 to 1000MHz
80W broadband high power amplifier module
Gain: 50dB Typical
Psat: 50dBm Typical
Supply Voltage: +28V
-

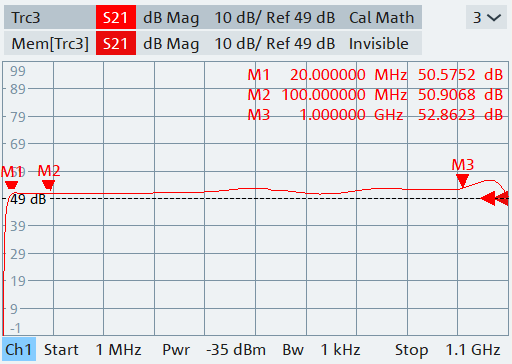

Gain @ +25℃
-

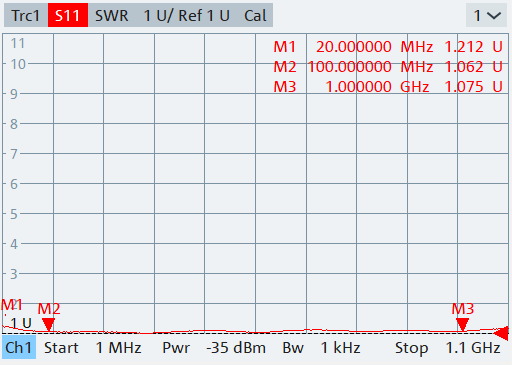

Input VSWR @ +25℃
-

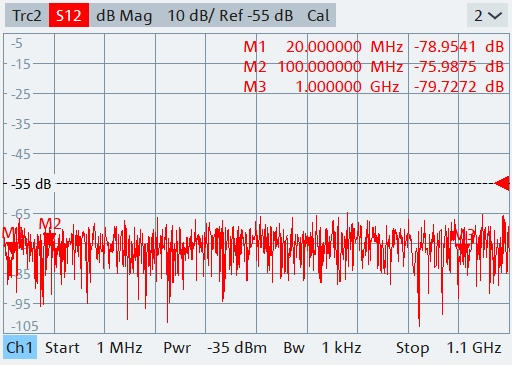

Isolation @ +25℃
-
Gain @ -40℃
-
Input VSWR @ -40℃
-

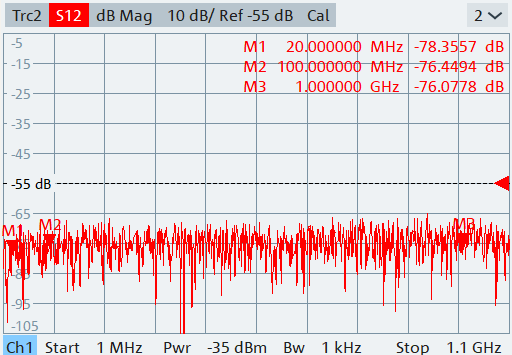

Isolation @ -40℃
-
Gain @ +70℃
-
Input VSWR @ +70℃
-

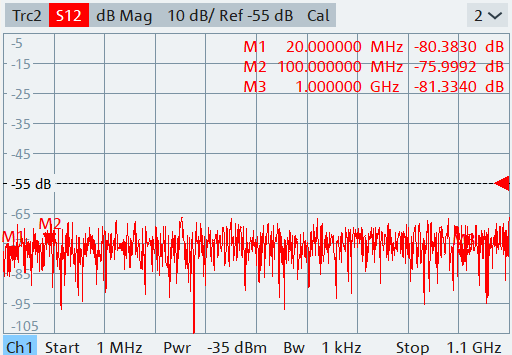

Isolation @ +70℃
| Frequency Range | 20 to 1000 MHz |
| Gain | 50dB |
| Gain Flatness | ±1.0dB (20-100MHz) ±1.5dB (100-1000MHz) |
| Gain Variation Over Temperature (-40℃~+70℃ ) | ±2.0 dB |
| Input VSWR | 1.5 : 1 |
| Saturated Output Power (Psat) | 50 dBm |
| Supply Current (Vcc=+28V) | 2.1 A |
| Weight | Net: 27 Max. ounces Including Heat Sink: 134.4 Max. ounces |
| Input / Output Connectors | SMA-Female |
| Material | Aluminum |
| Finish | Conductive Oxidation Wire Drawing |
| Operational Temperature | -40℃~+70℃ (Case Temperature) |
| Storage Temperature | -50℃~+105℃ |
| Altitude | 30,000 ft. (Epoxy Sealed Controlled environment) 60,000 ft. 1.0psi min (Hermetically Sealed Un- controlled environment) (Optional) |
| Vibration | 25g RMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
Main Module
| Module No. | Item | Description |
| SPA0P020149Z | 80W Broadband High Power Amplifier Module | Frequency range: 20 to 1000MHz; Gain(typ.): 50 dB; Input / Output Connectors: SMA-Female |
