SPA-9K-100M Series Broadband SSPA

Overview Specifications Ordering Resources

Saluki SPA-9K-100M is a solid-state RF power amplifier with an output frequency of 9 kHz to 100MHz and an output power of 3500W. Its design is based on the most advanced LDMOS technology in the industry, and its power output is efficient and reliable. The product has functions such as temperature and current detection, alarm protection and so on.

The broadband solid state power amplifier is mainly used for testing and measuring instruments, Communication or interference, aviation control and other fields.

Key Features

Multi-octave broadband performance

High output power

Wide dynamic range

High-efficiency GaN technology

Low power consumption

Low spurious signal

Forward & reverse power monitoring

Extremely load-resistant

Over voltage, over temperature, over current protection

CE, RoHS certification

Frequency Range	9kHz – 100MHz
Output Power	1000W (min.)
P1dB Output Power	800W (min.)
Gain	60dB (min.)
Gain Flatness	± 3dB (max.)
Adjustable Gain	20dB (max.)
Input Power	0dBm (max.)
Harmonic	-18dBc (typ.)
Spurious	-60dBc (max.)
Input VSWR	1.5:1 (max.)
VSWR Protection	5:1
Impedance	50 ohm
Input Port	Type-N (female)
Output Port	7/16 (female)
Monitoring Port	Type-N (female)
Communication Interface	LAN
Dimension	19’’, 12U
Power Supply	AC 220V±10%, 50/60Hz
Cooling Type	Air cooling
Operating Temperature	0 to 50℃

Main Machine

Module No.	Item	Description
SPA-9K-100M-50	Solid State Power Amplifier	9kHz to 100MHz, output power 50W
SPA-9K-100M-1000	Solid State Power Amplifier	9kHz to 100MHz, output power 1000W

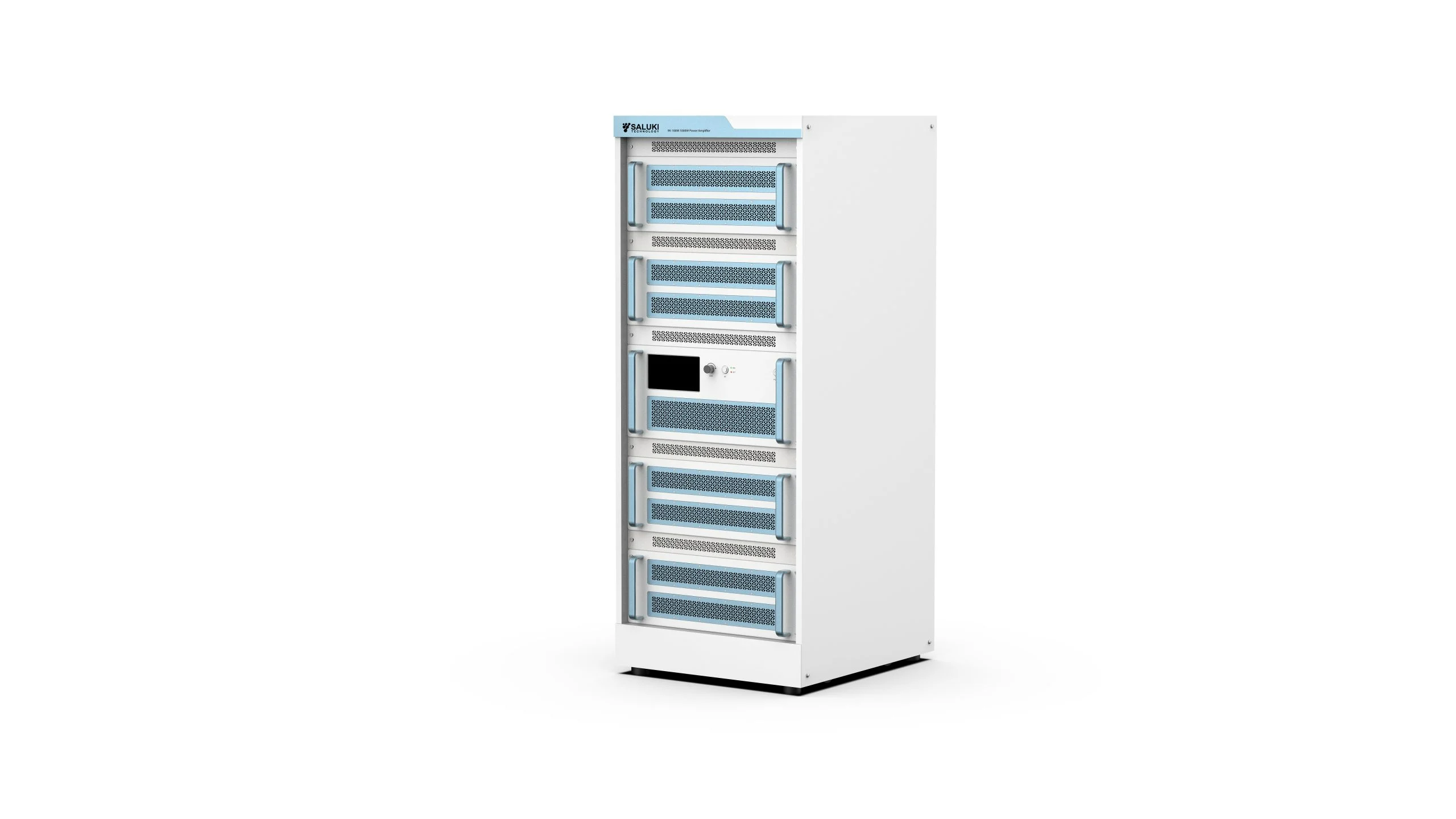

SPA-9K-100M-3500	Solid State Power Amplifier	9kHz to 100MHz, output power 3500W

Options

Module No.	Item
001	Overdrive protection
002	GPIB interface
