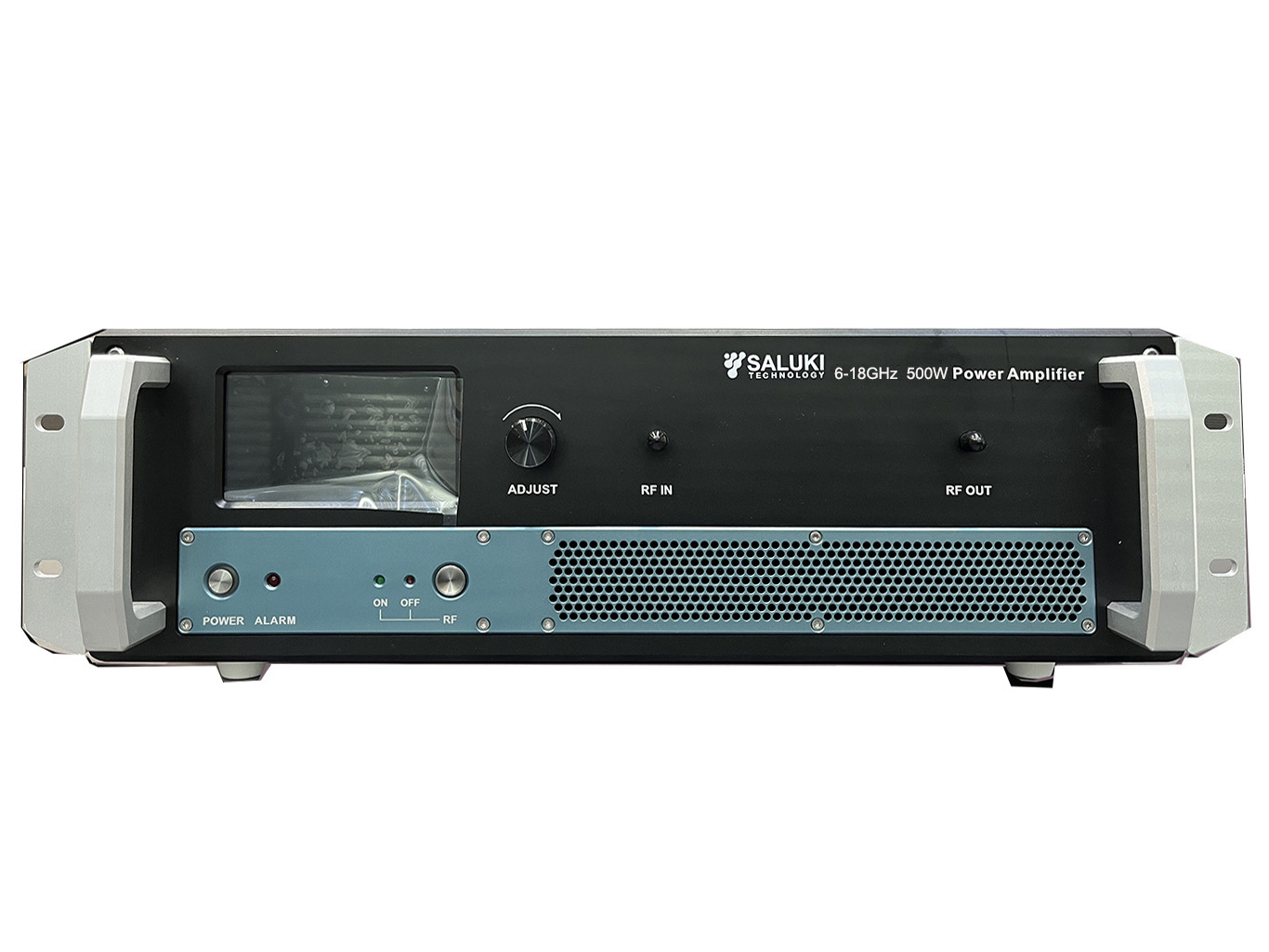

SPA-6-18 Series Broadband SSPA

Saluki SPA-6-18 series is a solid-state RF power amplifier with an output frequency of 6GHz to 18GHz and an output power of a maximum of 500W. Its design is based on the most advanced GaN technology in the industry, and its power output is efficient and reliable. The product has functions such as temperature and current detection, alarm protection and so on.

The broadband solid state power amplifier is mainly used for testing and measuring instruments, Communication or interference, aviation control and other fields.

Key Features

Multi-octave broadband performance

High output power

Wide dynamic range

High-efficiency GaN technology

Low power consumption

Low spurious signal

Forward & reverse power monitoring

Extremely load-resistant

Over voltage, over temperature, over current protection

CE, RoHS certification

Frequency Range

6GHz – 18GHz

Output Power

10W / 30W / 50W / 65W / 100W / 250W /500W (min.)

Gain

40dB / 43dB / 47dB / 50dB / 53dB / 56dB (min.)

Input VSWR

1.5:1 (typ.)

Impedance

50 ohm

Input & Output Port

Type-N, SMA, WRD650

Communication Interface

RS485, LAN

Power Supply

AC 220V±10%, 50/60Hz

Cooling Type

Air cooling

Operating Temperature

0 to 50℃

(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
SPA-6-18-10 Solid State Power Amplifier 6GHz to 18GHz, output power 10W
SPA-6-18-30 Solid State Power Amplifier 6GHz to 18GHz, output power 20W
SPA-6-18-50 Solid State Power Amplifier 6GHz to 18GHz, output power 50W
SPA-6-18-65 Solid State Power Amplifier 6GHz to 18GHz, output power 65W
SPA-6-18-100 Solid State Power Amplifier 6GHz to 18GHz, output power 100W
SPA-6-18-250 Solid State Power Amplifier 6GHz to 18GHz, output power 250W
SPA-6-18-500 Solid State Power Amplifier 6GHz to 18GHz, output power 500W

Options

Module No. Item
001 Overdrive protection
002 GPIB interface
