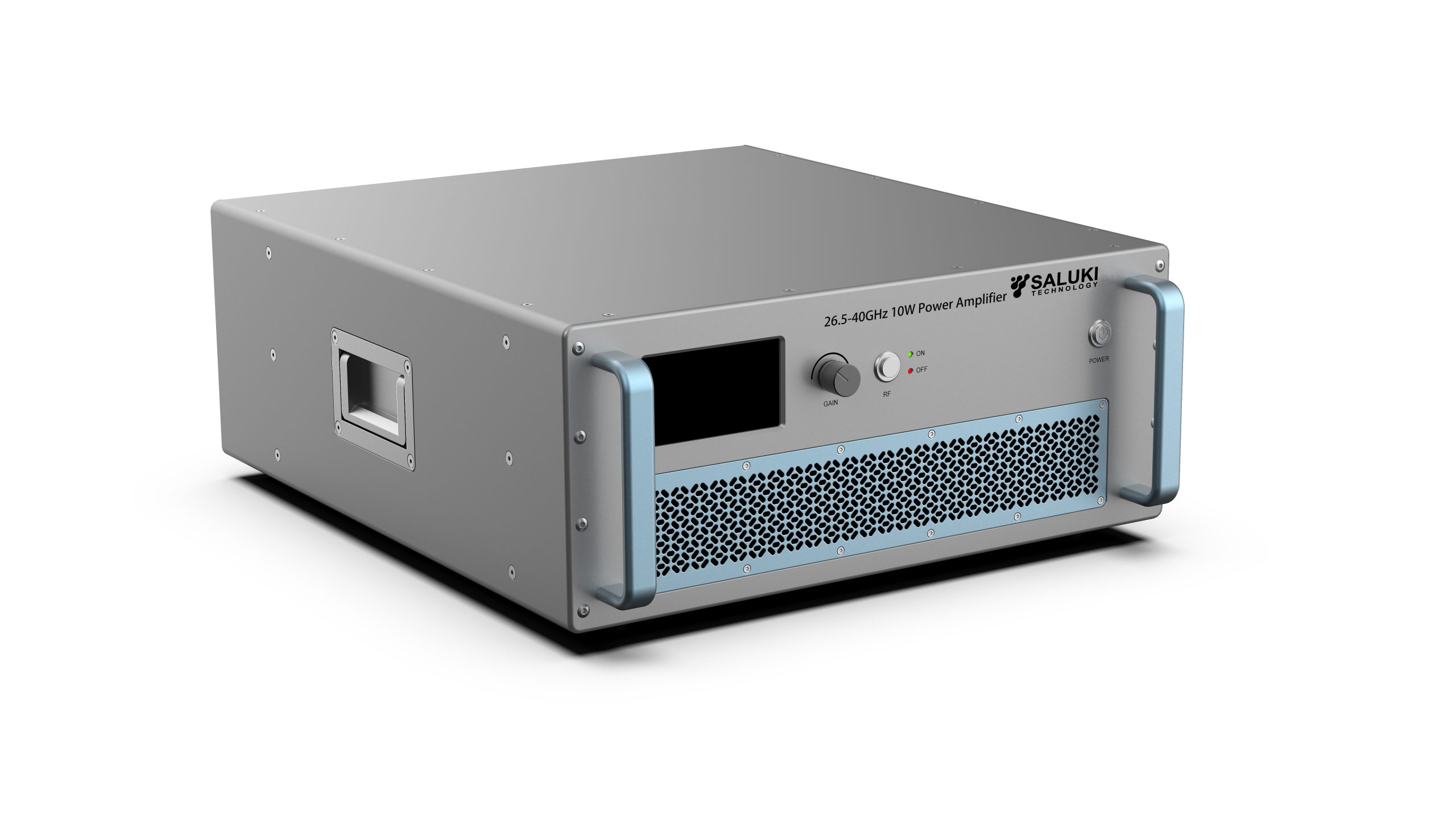

SPA-26-40 Series Broadband SSPA

Saluki SPA-26-40 series is a solid-state RF power amplifier with an output frequency of 26.5GHz to 40GHz and an output power of a maximum of 200W. Its design is based on the most advanced GaN technology in the industry, and its power output is efficient and reliable. The product has functions such as temperature and current detection, alarm protection and so on.

The broadband solid state power amplifier is mainly used for testing and measuring instruments, Communication or interference, aviation control and other fields.

Key Features

Multi-octave broadband performance

High output power

Wide dynamic range

High-efficiency GaN technology

Low power consumption

Low spurious signal

Forward & reverse power monitoring

Extremely load-resistant

Over voltage, over temperature, over current protection

CE, RoHS certification

Frequency Range

26.5GHz – 40GHz

Output Power

10W / 25W / 50W / 100W / 200W (min.)

Gain

33dB / 40dB / 43dB / 46dB / 50dB (min.)

Input VSWR

2:1 (max.)

Impedance

50 ohm

Input & Output Port

2.92mm, WR28

Communication Interface

RS485, LAN

Power Supply

AC 220V±10%, 50/60Hz

Cooling Type

Air cooling

Operating Temperature

0 to 50℃

(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
SPA-26-40-10 Solid State Power Amplifier 26.5GHz to 40GHz, output power 10W
SPA-26-40-25 Solid State Power Amplifier 26.5GHz to 40GHz, output power 25W
SPA-26-40-50 Solid State Power Amplifier 26.5GHz to 40GHz, output power 50W
SPA-26-40-100 Solid State Power Amplifier 26.5GHz to 40GHz, output power 100W
SPA-26-40-200 Solid State Power Amplifier 26.5GHz to 40GHz, output power 200W

Options

Module No. Item
001 Overdrive protection
002 GPIB interface
