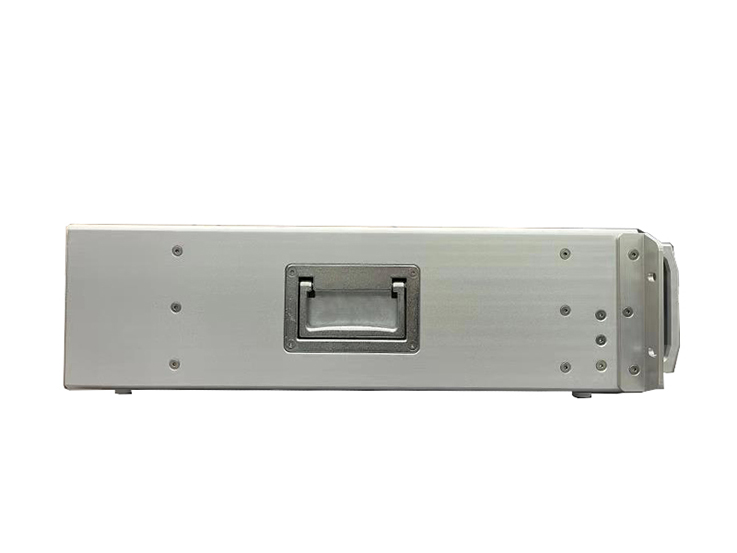

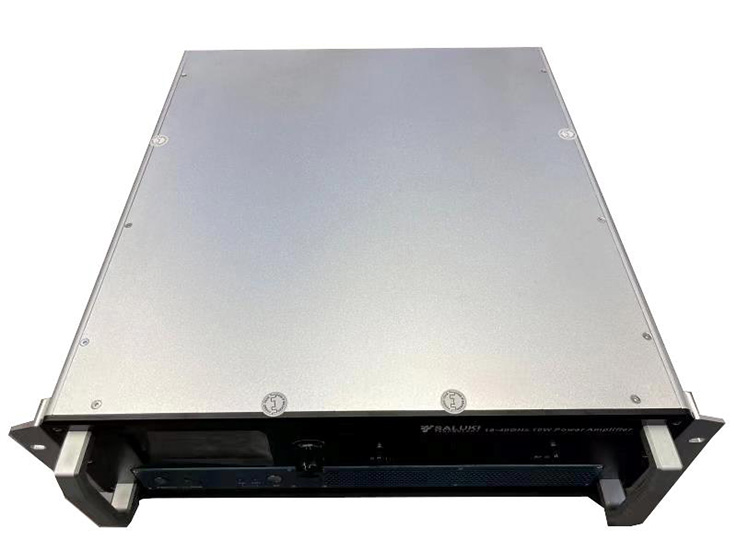

SPA-18-40 Series Broadband SSPA

Saluki SPA-18-40 is a solid-state RF power amplifier with an output frequency of 18GHz to 40GHz and an output power of 70W. Its design is based on the most advanced GaN technology in the industry, and its power output is efficient and reliable. The product has functions such as temperature and current detection, alarm protection and so on.

The broadband solid state power amplifier is mainly used for testing and measurin g instruments, Communication or interference, aviation control and other fields.

Key Features

Multi-octave broadband performance

High output power

Wide dynamic range

High-efficiency GaN technology

Low power consumption

Low spurious signal

Forward & reverse power monitoring

Extremely load-resistant

Over voltage, over temperature, over current protection

CE, RoHS certification

Frequency Range

18GHz – 40GHz

Output Power

5W / 10W / 20W / 40W / 70W(min.)

Gain

40dB (min.)

Gain Flatness

± 5dB (max.)

Adjustable Gain

15dB (max.)

Input Power

0dBm (max.)

Harmonic

-15dBc (typ.)

Spurious

-60dBc (max.)

Input VSWR

1.5:1 (typ.)

VSWR Protection

3:1

Impedance

50 ohm

Input Port

2.92mm (female)

Output Port

WRD180

Communication Interface

RS485, LAN

Dimension

19”, 3U

Power Supply

AC 220V±10%, 50/60Hz

Cooling Type

Air cooling

Operating Temperature

0 to 50℃

Main Machine

Module No. Item Description
SPA-18-40-5 Solid State Power Amplifier 18GHz to 40GHz, output power 5W
SPA-18-40-10 Solid State Power Amplifier 18GHz to 40GHz, output power 10W
SPA-18-40-20 Solid State Power Amplifier 18GHz to 40GHz, output power 20W
SPA-18-40-40 Solid State Power Amplifier 18GHz to 40GHz, output power 40W
SPA-18-40-70 Solid State Power Amplifier 18GHz to 40GHz, output power 70W

Options

Module No. Item
001 Overdrive protection
002 GPIB interface
