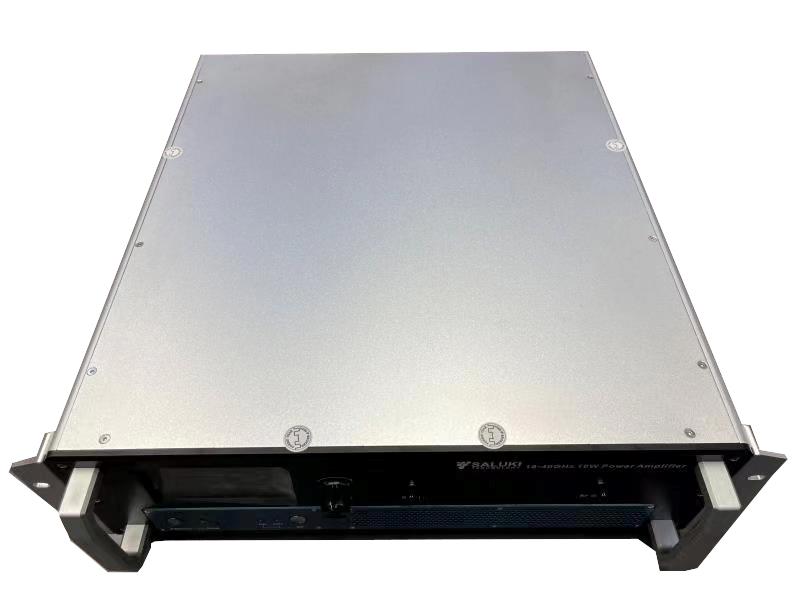

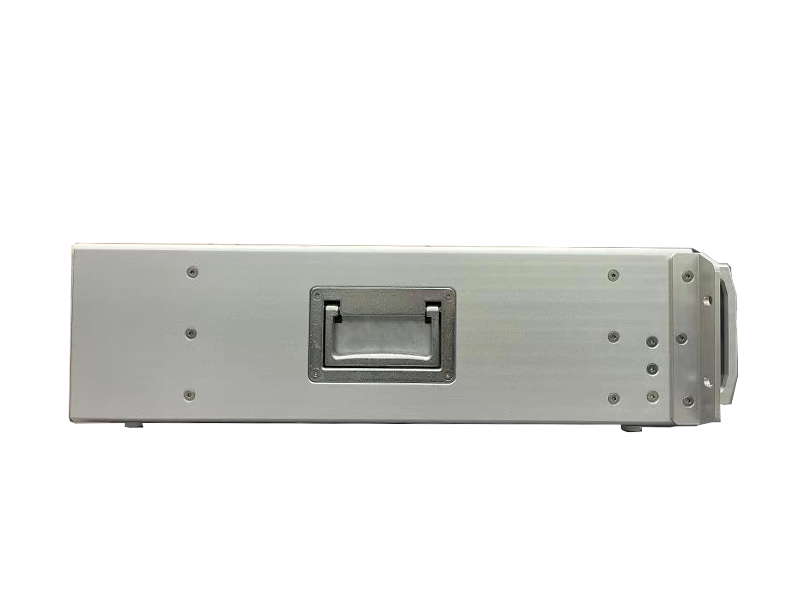

SPA-0P8-2P5 Series Broadband SSPA

Overview Specifications Ordering Resources

Saluki SPA-0P8-2P5 is a solid-state RF power amplifier with an output frequency of 0.8GHz to 2.5GHz and an output power of 1000W. Its design is based on the most advanced GaN technology in the industry, and its power output is efficient and reliable. The product has functions such as temperature and current detection, alarm protection and so on.

The broadband solid state power amplifier is mainly used for testing and measuring instruments, Communication or interference, aviation control and other fields.

Key Features

Multi-octave broadband performance

High output power

Wide dynamic range

High-efficiency GaN technology

Low power consumption

Low spurious signal

Forward & reverse power monitoring

Extremely load-resistant

Over voltage, over temperature, over current protection

CE, RoHS certification

Frequency Range	0.8GHz – 2.5GHz
Output Power	1000W (max.)
P3dB Output Power	50W (min.)
Gain	50dB (min.)
Gain Flatness	± 3dB (max.)
Adjustable Gain	20dB (max.)
Input Power	0dBm (max.)
Harmonic	-10dBc (typ.)
Background Noise	-40dBm/MHz (max.)
Spurious	-60dBc (max.)
Input VSWR	1.5:1 (typ.)
Impedance	50 ohm
Input Port	SMA (female)
Output Port	Type-N (female)
Communication Interface	RS485, LAN
Dimension	19’’, 3U
Power Supply	AC 220V±10%, 50/60Hz
Cooling Type	Air cooling
Operating Temperature	0 to 50℃

Main Machine

Module No.	Item	Description
SPA-0P8-2P5-100	Solid State Power Amplifier	0.8GHz to 2.5GHz, output power 100W
SPA-0P8-2P5-200	Solid State Power Amplifier	0.8GHz to 2.5GHz, output power 200W
SPA-0P8-2P5-300	Solid State Power Amplifier	0.8GHz to 2.5GHz, output power 300W
SPA-0P8-2P5-400	Solid State Power Amplifier	0.8GHz to 2.5GHz, output power 400W
SPA-0P8-2P5-500	Solid State Power Amplifier	0.8GHz to 2.5GHz, output power 500W
SPA-0P8-2P5-1000	Solid State Power Amplifier	0.8GHz to 2.5GHz, output power 1000W

Options

Module No.	Item
001	Overdrive protection
002	GPIB interface
