SLNA0P05202G is a wideband low noise RF coaxial amplifier covering frequency from 0.05GHz to 20GHz. The amplifier offers 27dB typical gain, 2.5dB typical noise figure and 19dBm Min. P1dB.
Saluki’s RF low noise amplifier brings compact and reliable gain block performance to MW&RF designers, wireless infrastructure and systems integrators.
(Note: send email to sales@salukitec.com for more modules)
Ultra Wide Band Low Noise Amplifier 0.05GHz ~ 20GHz
Gain: 27dB typical
Noise figure: 2.5dB typical
P1dB: 19dBm Min.
Supply Current (Vcc=+12V): 260mA typical
Impedance: 50ohms
| Frequency Range | 0.05GHz to 20GHz |

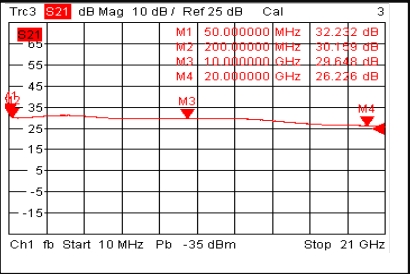

| Gain | 30dB(0.05-0.2GHz), 29dB(0.2-10GHz), 27dB(10-20GHz) typical |
| Gain Flatness | ± 1.0 dB(0.05-0.2GHz), ± 1.0 dB(0.2-10GHz), ± 1.5 dB(10-20GHz) typical
|
| Noise Figure | 4.0dB(0.05-0.2GHz), 2.0dB(0.2-10GHz), 2.5dB(10-20GHz) typical |
| Input VSWR | 3:1(0.05-0.2GHz), 1.8:1(0.2-10GHz), 1.8:1(10-20GHz) typical |
| Output VSWR | 1.5:1 |
| Output 1dB Compression Point (P1dB) | 22 dBm(0.05-0.2GHz), 23 dBm(0.2-10GHz), 21 dBm(10-20GHz) typical
|
| Saturated Output Power (Psat) | 24 dBm(0.05-0.2GHz), 25 dBm(0.2-10GHz), 23 dBm(10-20GHz) typical |
| Output Third Order Intercept (OIP3) | 30 dBm(0.05-0.2GHz), 32 dBm(0.2-10GHz), 30 dBm(10-20GHz) typical |
| Supply Current (Vcc=+12V) | 260 mA |
| Isolation S12 | -60 dB(0.05-0.2GHz), -65 dB(0.2-10GHz), -60 dB(10-20GHz) typical |
| Input / Output Connectors | SMA-Female |
| Finish | Gold Plated |
| Material | Aluminum |
| Weight | Net: 0.45 ounces (Max.) Including Heat sink: 2.2 ounces (Max.) |
(Note: see more detail information in the ‘Resource’ – ‘Datasheet’) |
| Module No. | Item | Description |
| SLNA0P05202G | Ultra Wide Band Low Noise Amplifier | 0.05 to 20GHz, Gain 30dB(0.05-0.2GHz), 29dB(0.2-10GHz), 27dB(10-20GHz) typical, SMA-Female |
