SLNA0P01183Y is a hermetically sealed ultra wide band low noise amplifier covering frequency from 0.01GHz to 18GHz. The amplifier offers 27 dB Typical gain, 3.0 dB Typical noise figure and 20 dBm Min. P1dB.
Saluki’s RF amplifier brings compact and reliable gain block performance to MW&RF designers, wireless infrastructure and systems integrators.
(Note: send email to sales@salukitec.com for more modules)
hermetically sealed ultra wide band low noise amplifier 0.01GHz - 18GHz
Gain: 27 dB Typical
Noise figure: 3.0 dB Typical
P1dB: 20 dBm Min.
Supply Voltage: +12V
| Frequency Range | 0.01 GHz to 18 GHz |
| Gain | 31 dB(0.01-10GHz), 27 dB(10-18GHz) Typical |
| Gain Flatness | ± 2.0 dB |
| Noise Figure | 2.5 dB(0.01-10GHz), 3.0 dB(10-18GHz) Typical |

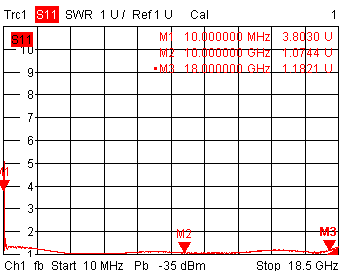

| Input VSWR | 1.4:1(0.01-10GHz), 1.5:1(10-18GHz) Typical
|
| Output VSWR | 1.6:1(0.01-10GHz), 1.8:1(10-18GHz) Typical |
| Output 1dB Compression Point (P1dB) | 26 dBm(0.01-10GHz), 22 dBm(10-18GHz) Typical |
| Saturated Output Power (Psat) | 27 dBm(0.01-10GHz), 24 dBm(10-18GHz) Typical |
| Output Third Order Intercept (OIP3) | 35 dBm(0.01-10GHz), 28 dBm(10-18GHz) Typical |
| Supply Current (Vcc=+12V) | 320 mA |
| Isolation S12 | -60 dB |
| Input /Output Connectors | SMA-Female |
| Finish | Gold Plated |
| Material | Aluminum |
| Weight | 1.06ounces
|
(Note: see more detail information in the ‘Resource’ – ‘Datasheet’) |
| Module No. | Item | Description |
| SLNA0P01183Y | Hermetically Sealed Ultra Wide Band Low Noise Amplifier | 0.01 to 18GHz, Gain 31 dB(0.01-10GHz), 27 dB(10-18GHz) Typical, SMA-Female |
