SE1300 Series Module Lock-In Amplifier

Overview Specifications Ordering Resources

SE1300 series module lock-in amplifier is the latest core technology product, and it is a measuring instrument with high performance and high-cost performance. Based on digital modulation, output filter and high-precision 24-bit digital-to-analog converter (ADC), the new Zynq architecture can accurately and quickly measure the effective signal components submerged in large noise. Moreover, SE1300 series module lock-in amplifiers can simultaneously measure the amplitude and phase information of the input signal and are comparable to the top technologies in the same industry in the world in terms of core parameters such as measurement accuracy, operating frequency range, signal-to-noise ratio, and dynamic reserve. At the same time, functions such as multi-harmonic measurement, oscilloscope, and spectrum analyzer have been newly developed, so that the functions of SE1300 series can meet various scientific research and industrial purposes.

SE1311 Unit Price: US$ 4,562.00

SE1351 Unit Price: US$ 5,042 .00

Key Features

DC to 100/500 kHz

Time constant 1us to 3ks

5nV/√Hz input noise

Up to 8 demodulators

>120 dB dynamic reserve

1nV to 5V full-scale sensitivity

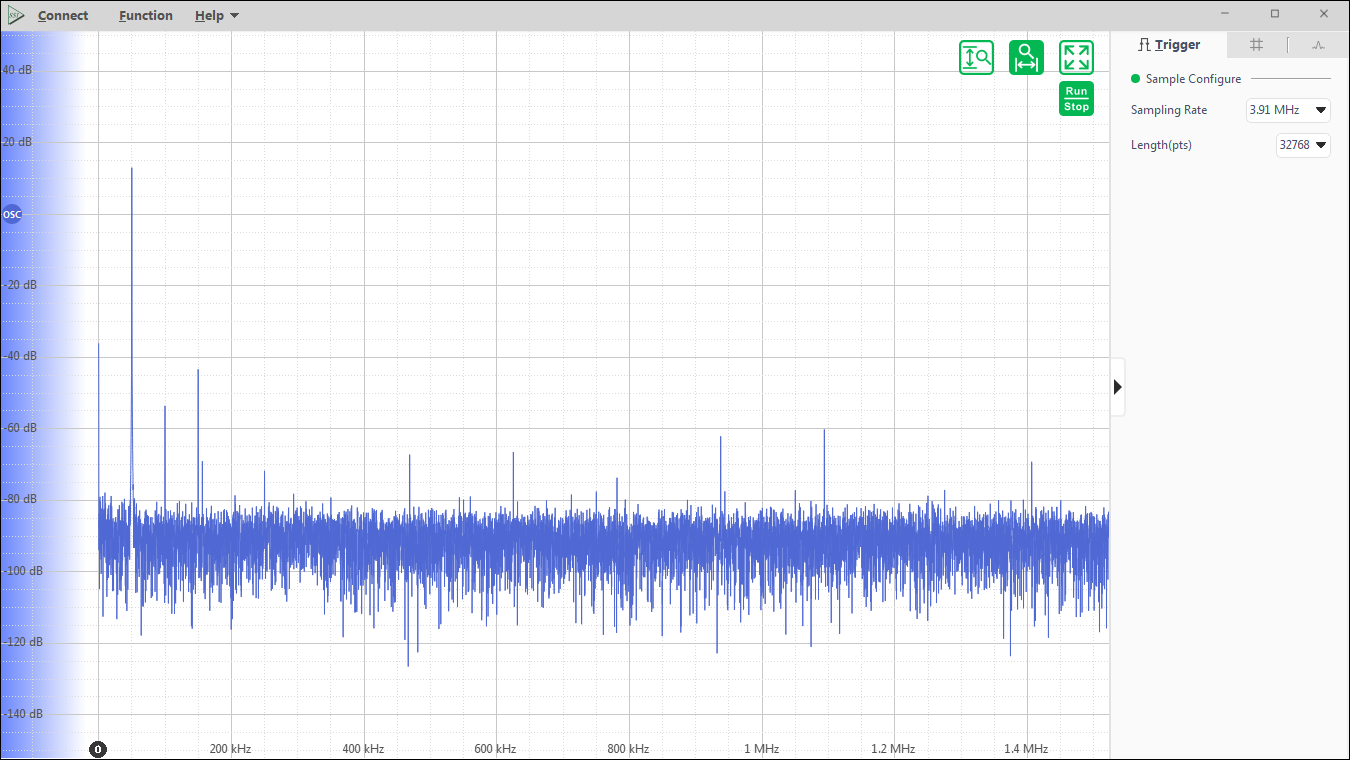

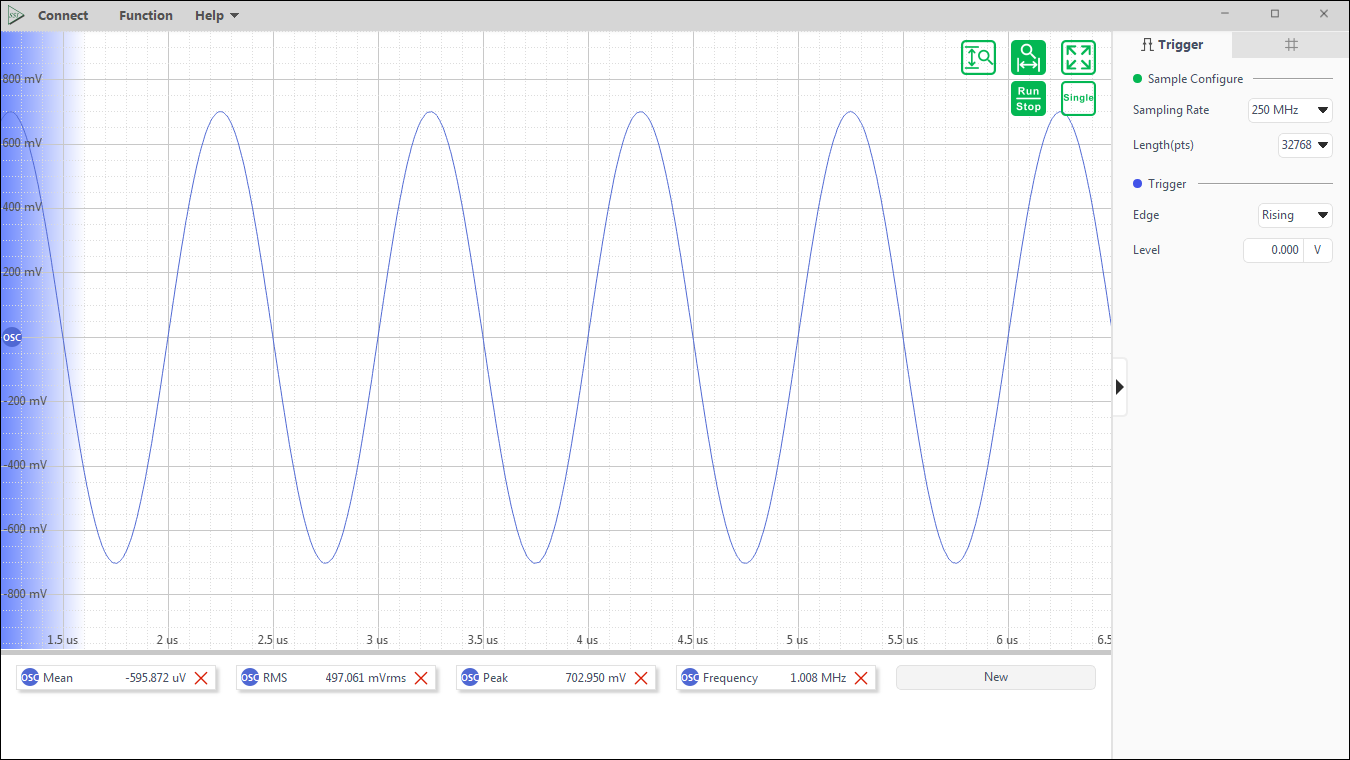

Scope, Spectrum Analyze

Small size, Easy integration

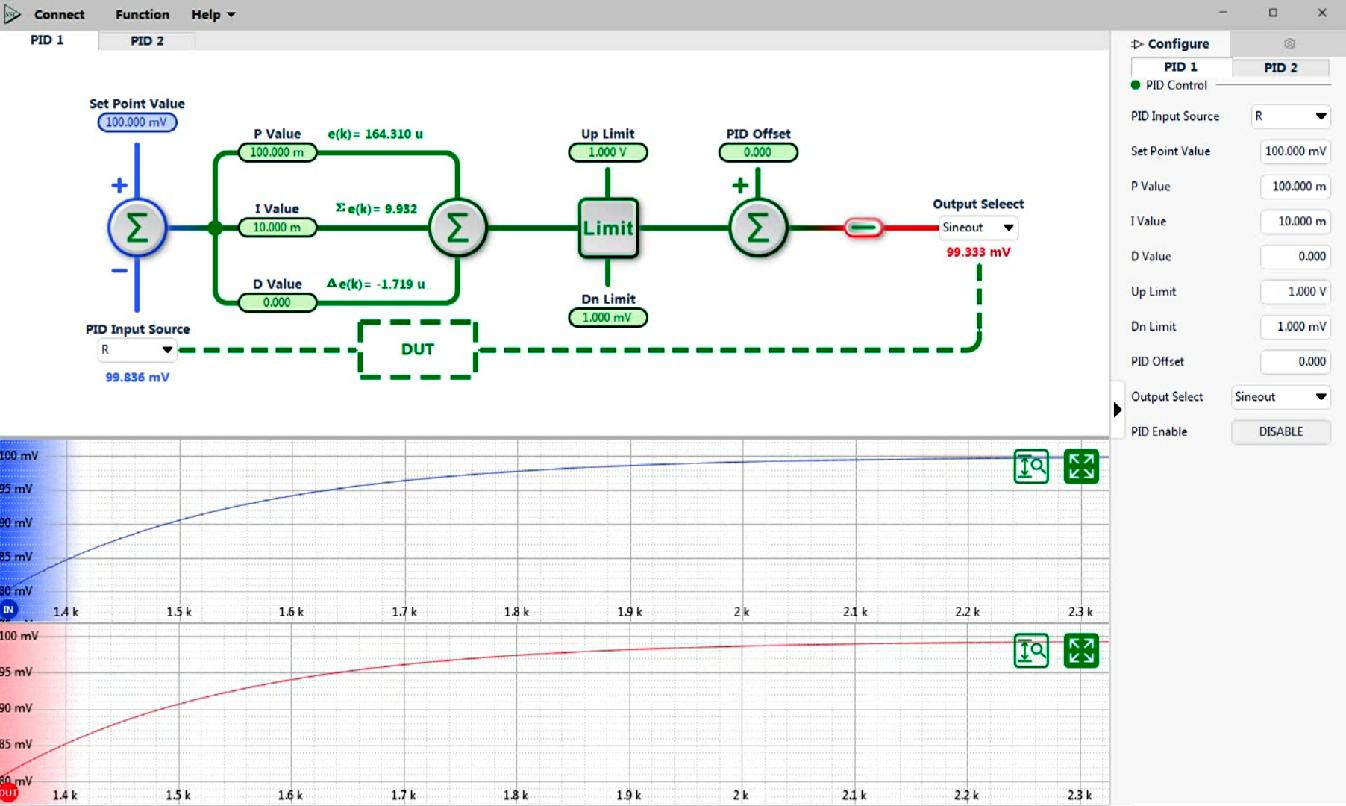

Software Interface

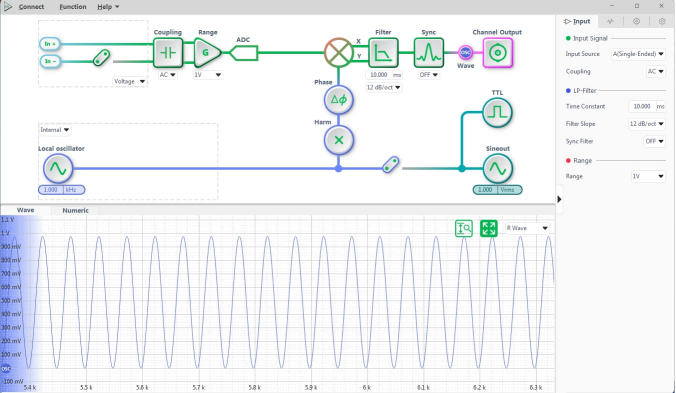

SE1300 series module lock-in amplifier has shortcut graphic buttons and rich graphic operation functions.

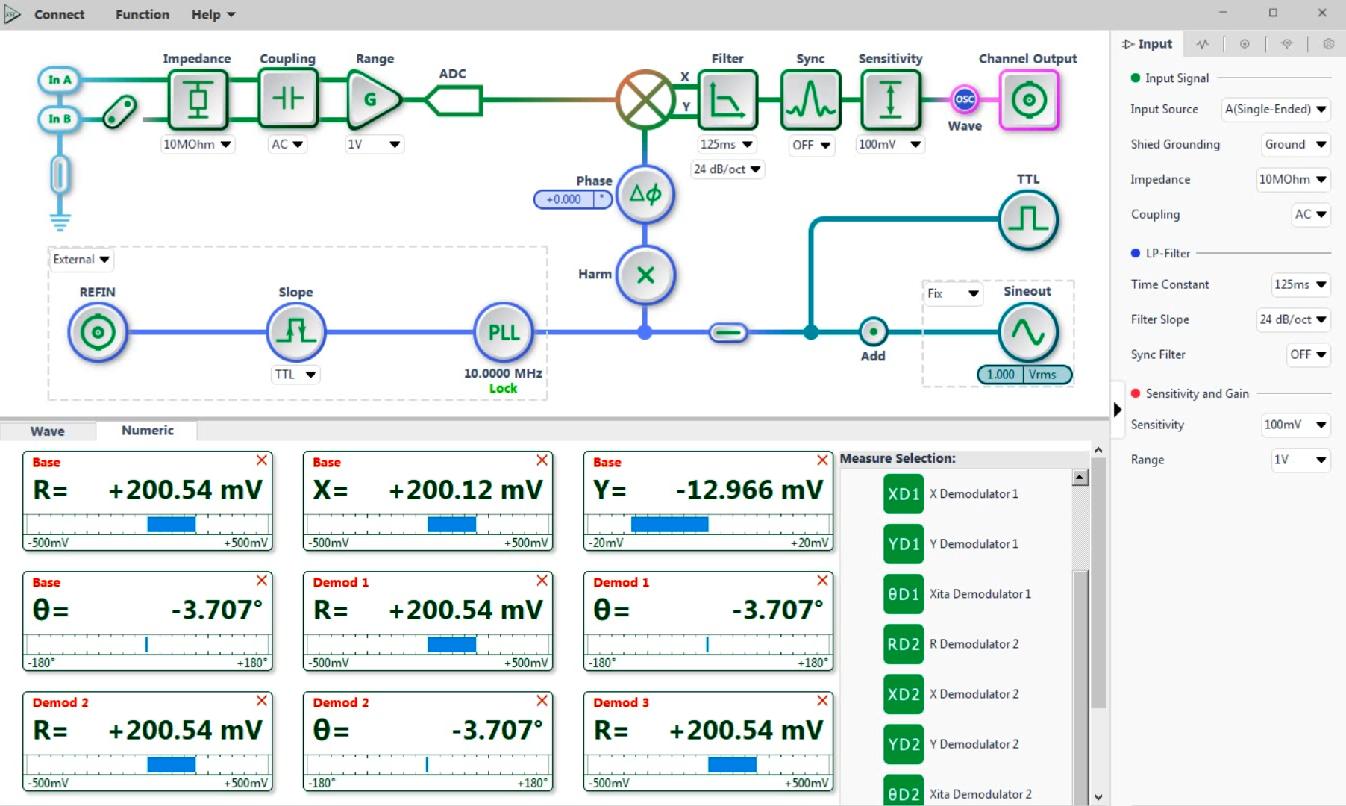

In addition, this software has clear numerical display and waveform display functions and can display measurement data in real time.

The measurement results can be exported and saved in excel format for subsequent analysis by professional software. Handy.

What’s more, we provide full support for Python, MATLAB, and LabVIEW application programming interfaces (APIs).

1. Signal Channel
Voltage Input Mode	Single-ended or Differential
Full-scale Sensitivity	1 nV to 5 V in a 1-2-5 sequence
Current Input	10⁶ V/A
Impedance	Voltage: 10 MΩ // 10 pF, AC or DC coupled Current: 1 kΩ to virtual ground
C.M.R.R	> 70 dB to 10 kHz, decreasing by 6 dB/oct
Dynamic Reserve	> 120 dB
Gain Accuracy	0.5% typ, 1% max
Voltage Noise	5 nV/√Hz at 997 Hz
Current Noise	260 fA/√Hz at 997 Hz
2.Reference Channel
Input	Frequency range: 1 uHz to 100/500 kHz Reference input: Square or Sine Input impedance: 10 MΩ
Phase	Resolution: 1 µdeg Absolute phase error: < 1 deg Relative phase error: < 0.001 deg Orthogonality: 90° ± 0.001° Phase noise: (Internal ref.) Synthesized, <0.0001° rms at 1 kHz; (External ref.) 0.005° rms at 1 kHz (100 ms time constant, 12 dB/oct) Drift: <0.01°/℃ below 10 kHz, <0.1°/℃ above 10 kHz
Harmonic Detection	2F, 3F, …nF to 100/500 kHz (n<65,535)
Acquisition Time	Internal ref.: instantaneous acquisition External ref.: (3 cycles + 5 ms) or 40 ms, whichever is larger
3. Demodulator
Quantity	8
Stability	Digital output: no zero drift on all setting Display: no zero drift on all setting Analog output: <5 ppm/℃ for all dynamic reserve settings
Harmonic Rejection	-90 dB
Time Constant	1 µs to 3 ks (<200 Hz) (6, 12, 18, 24, 30, 36, 42, 48 dB/oct rolloff)
Synchronous Filters	Effective below 1 kHz and steeper than 18 dB/oct
4. Internal Oscillator
Frequency	Range: 1 mHz to 100/500 kHz Accuracy: 2 ppm + 10 µHz Resolution: 1 uHz
Distortion	-70 dBc
Amplitude	100 nVrms to 5 Vrms 10nVrms Resolution
Accuracy	1%
Stability	100 ppm/℃
Sine Output	Sine signal output impedance is 50Ω
TTL Synchronous	5V TTL/CMOS level
Output	output impedance 200Ω
5. Communication Interfaces	UART: XH2.54-4PIN Network interface: Isolated 1000Mbps RJ45 interface
6. Outputs
CH1 and CH2 Outputs	Function: output X, Y, R, θ, harmonic Amplitude: ±10 V, 1 mV resolution Impedance: 100 Ω
AUX Inputs	Function: 2 channel input Amplitude: ±10 V Impedance: 1 MΩ
7. General
Power Requirement	Voltage: 12VDC±5% Power: Standard 18W, maximum 24W
Dimension	180 (L) × 44 (H) × 106 (D) mm

Main Machine

SE1311	Module Lock-In Amplifier	DC to 100 kHz
SE1351	Module Lock-In Amplifier	DC to 500 kHz
