SBF2P012P0206Z is a band pass filter covering frequency from 2.01 to 2.025 GHz. The filter offers 0.8dB typical insertion loss, 0.4dB typical pass band ripple and 1.25:1 typical VSWR.
SBF2P012P0206Z Band Pass Filter
Key Features
High Rejection
Low Insertion Loss
Excellent Temperature Stability
Miniaturization
Filter Type: Cavity
Customization available upon request
-
Insertion Loss
-
Input VSWR
-

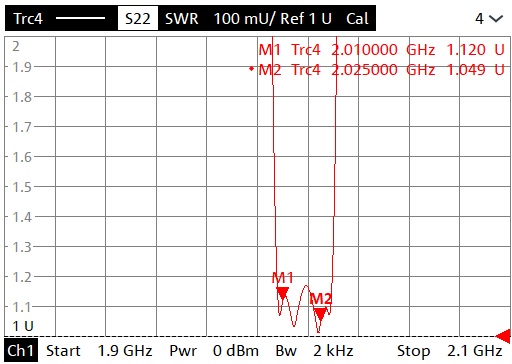

Output VSWR
-
Rejection
| Center Frequency | 2.0175 GHz |
| Frequency Range | 2.01 to 2.025 GHz |
| Insertion Loss | 0.8 dB |
| Pass Band Ripple | 0.4 dB |
| VSWR | 1.25:1 |
| Rejection(@Fc±40MHz) | 63 dB |
| Power Rating | Average: 50W Peak(10% Duty Cycle, 1 us Pulse Width): 200W |
| Impedance | 50 Ohms |
| Weight | 8.0 Max. ounces |
| Input / Output Connectors | SMA-Female |
| Material | Aluminum |
| Finishing | Gray Paint |
| Package | Hermetically Sealed (Laser Welded) |
| Operational Temperature | -25ºC~+70ºC |
| Storage Temperature | -40ºC~+85ºC |
| Altitude | 30,000 ft. (Epoxy Sealed Controlled environment) |
| (Optional) | 60,000 ft. 1.0psi min (Hermetically Sealed Un-controlled environment) |
| Vibration | 25g RMS(15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
Main Module
| Module No. | Item | Description |
| SBF2P012P0206Z | Band Pass Filter | Frequency range: 2.01-2.025GHz; Insertion loss (typ.): 0.8 dB |
