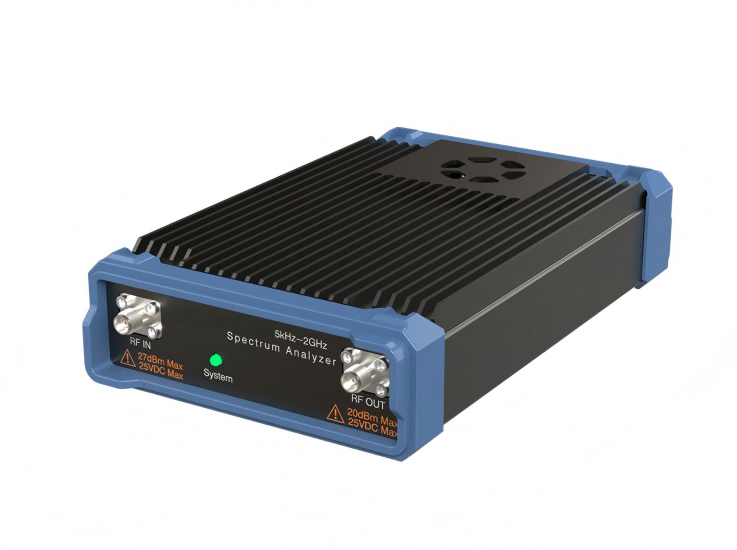

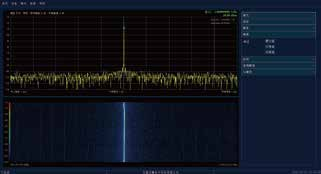

Saluki SAM532 series spectrum analyzer module is the perfect choice for system integration with excellent performance, small size and high cost performance. Users can connect it with a PC to display the test screen, just click the mouse on the PC to enjoy the convenience and speed of the desktop spectrum analyzer. It can also be integrated into your system to develop related functions of spectrum analysis. The modular design of SAM532 will bring great convenience to user testing and save costs at the same time. The PC host computer directly obtains the measurement results through the USB or LAN interface. Users can flexibly carry out secondary development according to their needs, and can quickly build and upgrade the integrated test system.
SAM532 Series Spectrum Analyzer Module
Key Features
Frequency range: 9kHz - 3.6GHz / 7.5GHz
Resolution bandwidth: 1Hz -3MHz
Sensitive, DANL < -158dBm
Built-in tracking source, preamplifier, audio demodulation and frequency counting functions
Independent source modules provide wider choices for system integration
Adopt USB, LAN interface, easy to control connection
Standard and complete SCPI commands make system integration testing flexible and convenient
Small size, ultra-light weight, easy system integration
| Frequency Range | SAM532A: 9kHz to 3.6GHz, SAM532B: 9kHz to 7.5GHz, |
| Amplitude Range | SAM532A: DANL to +27dBm (fc≥10MHz) SAM532B: DANL to +20dBm (fc≥10MHz) |
| Safe Input Level | SAM532A: Average continuous power, maximum +27dBm SAM532B: Average continuous power, maximum +23dBm |
| Input Attenuator Range | SAM532A: 0 to 39dB in 3 dB steps SAM532B: 0 to 30dB in 1 dB steps |
| RBW Range | 1Hz to 500kHz (in 1-10 continuous steps), 1MHz, 3MHz |
| VBW Range | 10Hz – 3MHz |
| Displayed Average Noise Level (Preamplifier On) | SAM532A: • 100kHz – 1MHz: <-120dBm-3×(f/100kHz)dB • 1MHz – 10MHz: <-150dBm • 10MHz – 1GHz: <-155dBm • 1GHz – 3.6GHz: <-148dBm SAM532B: • 100kHz – 1MHz: <-110dBm-3×(f/100kHz)dB • 1MHz – 10MHz: <-140dBm • 10MHz – 2GHz: <-147dBm • 2GHz – 3.4GHz: <-143dBm • 3.4GHz – 5GHz: <-145dBm • 5GHz – 7.5GHz: <-138dBm (0dB attenuation, RBW=1 Hz) |
| Displayed Average Noise Level (Preamplifier Off) | SAM532A: • 100kHz – 1MHz: <-100dBm-3×(f/100kHz)dB • 1MHz – 10MHz: <-130dBm • 10MHz – 1GHz: <-135dBm • 1GHz – 3.6GHz: <-130dBm SAM532B: • 100kHz – 1MHz: <-95dBm-3×(f/100kHz)dB • 1MHz – 10MHz: <-125dBm • 10MHz – 2GHz: <-133dBm • 2GHz – 3.4GHz: <-130dBm • 3.4GHz – 5GHz: <-133dBm • 5GHz – 7.5GHz: <-127dBm (0dB attenuation, RBW=1 Hz) |
| SSB Phase Noise | SAM532A: • -90 dBc/Hz @ 30kHz offset • -100 dBc/Hz @ 100kHz offset • ≤-115 dBc/Hz @ 1MHz offset SAM532B: • -80 dBc/Hz @ 30kHz offset • -90 dBc/Hz @ 100kHz offset • ≤-110 dBc/Hz @ 1MHz offset |
| Sweep Time | Non-zero span: 3ms – 3000s, Zero span: 1ms – 3000s |
| Sweep Mode | Continuous, single |
| Frequency Counter | Resolution: 1Hz, 10Hz, 100Hz, 1kHz |
| TOI (>30MHz) | SAM532A: +7dBm, SAM532B: +10dBm |
| SHI (>10MHz） | +40dBm |
| Input Related Spurious (>10MHz) | <-60dBc |
| Residual Response (>10MHz) | <-85dBm |
| Tracking Source | SAM532A: 100kHz – 1.5GHz/3.6GHz, SAM532B: 100kHz – 3.2GHz |
| Dimension | SAM532A: 120 (W) × 145(D) × 28 (H) mm, SAM532B: 140 (W) × 145(D) × 28 (H) mm |
| Weight | SAM532A: 800g, SAM532B: <1.1kg |
(Note: see more detail information in the ‘Resource’ – ‘Datasheet’) |
Main Machine
| Module No. | Item | Description |
| SAM532A | Spectrum Analyzer | 9 kHz to 3.6 GHz |
| SAM532B | Spectrum Analyzer | 9 kHz to 7.5 GHz |
Options
| Module No. | Item | Description |
| SAM532-01 | 1.5GHz Tracking Source | Frequency range: 100kHz - 1.5GHz, for SAM532A |
| SAM532-02 | 3.6GHz Tracking Source | Frequency range: 100kHz - 3.6GHz, for SAM532A |
| SAM532-03 | 3.2GHz Tracking Source | Frequency range: 100kHz - 3.2GHz, for SAM532B |
| SAM532-04 | Directional Antenna | Frequency range: 600MHz - 8GHz |
| SAM532-05 | Omnidirectional Antenna | Frequency range: 300MHz - 7.5GHz |
| SAM532-06 | Standard Housing | Spectrum analyzer module housing |
