S5105 Series Microwave Multifunctional Analyzer

Overview Specifications Ordering Resources

S5105 series microwave multifunctional analyzer has the wide frequency range from 30kHz to 40GHz. It integrates multiple functions such as dual-port vector network analysis, cable and antenna feeder test, vector voltage measurement, spectrum analysis, field strength measurement, and power measurement, providing you with powerful comprehensive test capabilities. S5105 series RF analyzer is widely used in the radar performance test and cable TV, wireless communication field.

* Equivalent to R&S Fsh RF Analyzer Fft Analyzer Audio Analyzer.

Key Features

Dual-port vector network analysis can make comprehensive RF network parameters measurement quickly and accurately, providing logarithmic, linear, phase, group delay, impedance chart, polar coordinate, SWR and other display formats, and providing time domain measurement options.

Cable and antenna feeder test can measure the SWR, return loss, impedance, cable loss and other parameters of microwave networks such as antenna feeders, transmission lines and cables, and can conveniently measure impedance discontinuity points in feeders and cables, with DTF function.

Vector voltage measurement adopts an integrated solution instead of the traditional vector voltmeter to accurately test the electrical length of cables and some other devices under test.

Spectrum analysis is a spectrum analyzer with standard functions, which can measure the spectrum characteristics comprehensively in an electromagnetic environment.

Field strength measurement has a friendly user interface and high test sensitivity. With the corresponding test antenna, it can effectively monitor the electromagnetic spectrum and is widely used in space electromagnetic environment monitoring and radio management.

USB power sensor is configured to achieve large dynamic range and high-precision power measurement, and can also carry out power monitoring through the spectrum input port.

Data storage, playback and comparison functions

Intergrate USB, LAN and other interfaces

Standard Network Analysis

S5105 series microwave analyzer has the standard network analysis function. It offers a frequency range from 30kHz to 18GHz/ 26.5GHz and 50MHz to 40GHz.

S5105 series provides standard full 4S parameter vector network analysis and measurement capability and can carry out fully S-parameter analysis against amplifier, filter, attenuator, and duplexer, and its display format includes logarithm, linearity, phase, group delay, impedance, polar coordinates, standing wave ratio, etc.
Standard Spectrum Analysis

S5105 series microwave analyzer has the standard spectrum analysis function. It offers a frequency range from 100kHz to 18GHz/ 26.5GHz/ 40GHz.

S5105 series provides standard spectral analysis, channel power, occupied bandwidth, adjacent channel power ratio, and frequency counting functions, featuring wide frequency bandwidth, high sensitivity, high dynamic range, and good phase noise and has the capability of implementing fast and efficient signal detection and measurement.

In addition, the S5105 series can display 3 traces at the same time and has provided different detector mode selections such as standard, sampling, positive peak, negative peak, and average.

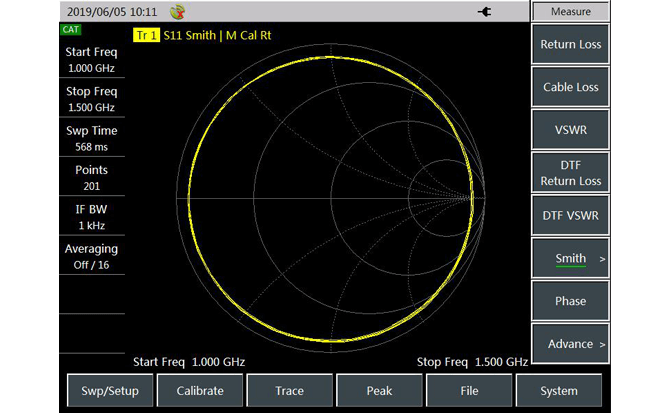

Optional Cable & Antenna Analysis

S5105 series microwave analyzer has an optional cable and antenna analysis function. It offers a frequency range from 100kHz to 18GHz/ 26.5GHz and 50MHz to 40GHz.

As a cable and antenna tester, the S5105 series can measure the return loss, voltage standing wave ratio, impedance, cable loss, and fault point distance of the analyzed cables and antennas. The return loss and distance-to-fault measurement will help the user determine the specific cause of the fault in the cable and antenna system that degrades the overall system.

What’s more, it has provided built-in common cable and antenna feeder parameters for easy use.
Optional Field Strength Measurement

S5105 series microwave analyzer has an optional field strength measurement function.

It can be used for field strength measurement together with the Saluki corresponding test antennas and is widely used in space electromagnetic environment monitoring and radio management. The analyzer also supports user antennas, allowing users to define their own antennas.
Optional Power Measurement

S5105 series microwave analyzer has an optional power measurement based on a USB power sensor.

S5105 series can perform power measurement by selecting the S87230 series USB continuous wave power sensor, which can analyze the RFMW power up to 40GHz. The power sensor has a wide frequency range and large power dynamic range.
Optional Power Monitoring

S5105 series microwave analyzer has an optional power monitoring function. It offers a frequency range from 100kHz to 18GHz/ 26.5GHz/ 40GHz.

This mode eliminates the necessity of connecting an external power probe, and can easily test the power of a continuous wave signal under a certain bandwidth, and the channel bandwidth can be set to a larger width to simulate the average power meter measurement. S5105 series is used for power monitoring through the spectrum input port.
Optional Vector Voltage Measurement

S5105 series microwave analyzer has an optional vector voltage measurement function.

With the frequency range from 30kHz to 18GHz/ 26.5GHz and 50MHz to 26.5GHz, the S5105 series can accurately measure the electrical length and phase shift of devices under test and can perform reflection and transmission tests.

The VVM is a convenient tool for phase matching of RF cables, which is mainly used to measure the electrical length of cables or other kits under test.

1. Vector Network Analysis	(Standard Configuration)
Frequency Range	S5105D: 30 kHz to 18 GHz, S5105E: 30 kHz to 26.5 GHz, S5105F: 50 MHz to 40 GHz
Frequency Accuracy	±1×10^-6
Power Range	Big, small, manual
Effective Directivity	S5105D: 32dB – 40dB, S5105E: 30dB – 40dB, S5105F: 28dB – 35dB

2. Spectrum Analysis	(Standard Configuration)
Frequency Range	S5105D: 100 kHz to 18 GHz, S5105E: 100 kHz to 26.5 GHz, S5105F: 100 kHz to 40 GHz
Resolution Bandwidth	1Hz – 5MHz (step by 1,3,10)
Video Bandwidth	1Hz – 5MHz (step by 1,3,10)
Displayed Average Noise Level (Preamplifier On)	S5105D: -140dBm to -151dBm, S5105E: -138dBm to -151dBm, S5105F: -135dBm to -151dBm
Displayed Average Noise Level (Preamplifier Off)	S5105D: -120dBm to -135dBm, S5105E: -116dBm to -135dBm, S5105F: -113dBm to -135dBm
Noise Sideband (CF=1GHz)	• ≤ -99dBc/Hz@100kHz • ≤ -110dBc/Hz@1MHz
Residual Response	S5105D: ≤-80dBm, S5105E: ≤-80dBm, S5105F: ≤-70dBm
Max. Safety Input Level	+27dBm

3. Cable & Antenna Feeder Test	(Optional)
Frequency Range	S5105D: 30 kHz to 18 GHz, S5105E: 30 kHz to 26.5 GHz, S5105F: 50 MHz to 40 GHz
Frequency Accuracy	±1×10^-6
Power Level	Big, small
Data Points	11 – 10001
Effective Directivity	S5105D: 32dB – 40dB, S5105E: 30dB – 40dB, S5105F: 28dB – 35dB

4. Power Monitoring	(Optional)
Frequency Range	S5105D: 100 kHz to 18 GHz, S5105E: 100 kHz to 26.5 GHz, S5105F: 100 kHz to 40 GHz
Power Range	S5105D: -60dBm to +20dBm, S5105E: -60dBm to +20dBm, S5105F: -50dBm to +20dBm

Test Port	• S5105D: Type-N (f) • S5105E: 3.5mm (m) • S5105F: 2.4mm (m)
Power Supply	Rechargable lithium-ion battery or power adapter
Dimension	315mm × 220mm × 102mm (excluding the handle and bracket)
Weight	5.3kg (excluding battery)

Main Machine

Module No.	Item	Description
S5105D	Microwave Multifunctional Analyzer	100 kHz / 30 kHz to 18 GHz
S5105E	Microwave Multifunctional Analyzer	100 kHz / 30 kHz to 26.5 GHz
S5105F	Microwave Multifunctional Analyzer	100 kHz / 50 MHz to 40 GHz

Hardware Options

Module No.	Item	Description
S5105-H01	Rechargeable Lithium-ion Battery	Backup
S5105-H02	AC-DC Adapter	Backup
S5105-H04	S31101A N-type Male Calibration Kit	DC - 18GHz, Calibrate for vector network analysis, antenna test and vector
S5105-H05	S31101B N-type Female Calibration Kit	DC - 18GHz, Calibrate for vector network analysis, antenna test and vector
S5105-H06	S31121 3.5mm Calibration Kit	DC - 26.5GHz, Calibrate for vector network analysis, antenna test and vector
S5105-H07	S31123 2.4mm Calibration Kit	DC - 40GHz, Calibrate for vector network analysis, antenna test and vector
S5105-H08	N (M-M) Calibration Cable	Calibration or Cable test
S5105-H09	N (F-M) Calibration Cable	Calibration or Cable test
S5105-H10	3.5mm (F-F) Calibration Cable	Calibration or Cable test
S5105-H11	3.5mm (F-M) Calibration Cable	Calibration or Cable test
S5105-H12	2.4mm (F-F) Calibration Cable	Calibration or Cable test
S5105-H13	2.4mm (F-M) Calibration Cable	Calibration or Cable test
S5105-H14	S87230 USB Power Sensor	9kHz - 6GHz, For high-precision power measurement
S5105-H15	S87231 USB Power Sensor	10MHz - 18GHz, For high-precision power measurement
S5105-H16	S87232 USB Power Sensor	50MHz - 26.5GHz, For high-precision power measurement
S5105-H17	S87233 USB Power Sensor	50MHz - 40GHz, For high-precision power measurement
S5105-H18	S89101A Antenna	10kHz - 20MHz, For Field Strength Measurement
S5105-H19	S89101B Antenna	20MHz - 200MHz, For Field Strength Measurement
S5105-H20	S89101C Antenna	200MHz - 500MHz, For Field Strength Measurement
S5105-H21	S89101D Antenna	500MHz - 4000MHz, For Field Strength Measurement
S5105-H22	S89901 Antenna	1GHz - 18GHz, For Field Strength Measurement
S5105-H23	S89401 Antenna Amplifier	10kHz - 4GHz, For Field Strength Measurement
S5105-H24	S71522D Attenuator	(40dB,25W), For high power measurement
S5105-H25	S71523C Attenuator	(40dB,50W), For high power measurement
S5105-H26	S71524C Attenuator	(40dB,100W), For high power measurement
S5105-H27	S71101 Adapter	N(F)-N(F), For switching between connectors
S5105-H28	S71115 Adapter	3.5mm(M)-N(F), For switching between connectors
S5105-H29	S71116 Adapter	3.5mm(M)-N(M), For switching between connectors
S5105-H30	S71117 Adapter	3.5mm(F)-N(M), For switching between connectors
S5105-H31	S81101 Adapter	N(M)-N(F), For switching between connectors
S5105-H32	Soft Backpack	For carrying
S5105-H33	Aluminum Carrying Case	For transportation
S5105-H34	Waterproof Safety Box	For transportation
S5105-H35	S89901 Antenna Handle	Used with option H22 antenna
S5105-H36	S20402 Electrical Cal Kit	Frequency range: 300kHz - 18GHz
S5105-H37	S20403 Electrical Calibration Kit	Frequency range: 10MHz - 26.5GHz
S5105-H38	S20404 Electrical Calibration Kit	Frequency range: 10MHz - 50GHz
S5105-H39	S87302FZ Test Cable	3.5/3.5-female to female, 60cm
S5105-H40	S87302FE Test Cable	3.5/3.5-female to male, 60cm
S5105-H41	S87302AZ Test Cable	N/N-male to male, 60cm
S5105-H42	S87302BA Test Cable	N/N-female to male, 60cm
S5105-H43	S87234D USB Peak/Average Power Sensor	50MHz-18GHz, for peak power measurement
S5105-H44	S87234E USB Peak/Average Power Sensor	50MHz-26.5GHz, for peak power measurement
S5105-H45	S87234F USB Peak/Average Power Sensor	50MHz-40GHz, for peak power measurement

Software Options

Module No.	Item	Description
S5105-S02	Antenna Test	For testing RL, VSWR, Breakpoint of cable and antenna
S5105-S03	Vector Voltmeter	For testing cable phase shift and electrical length
S5105-S04	USB Power Measurement	External USB power probes can conduct precise measurement of continuous wave signal (need additional USB power sensors)
S5105-S05	Power Detection	Receiving external signal at spectrum input port in order to measure signal power
S5105-S06	Field Strength Measurement	Measure the field strength with the corresponding antenna (need additional antenna)
S5105-S07	GPS Positioning	Provide geographical information such as longitude, latitude and altitude (including GPS antenna)
S5105-S08	Electronic Calibration	Software, should buy e-cal module separately (for VNA, C&A, Vector Voltmeter function)
