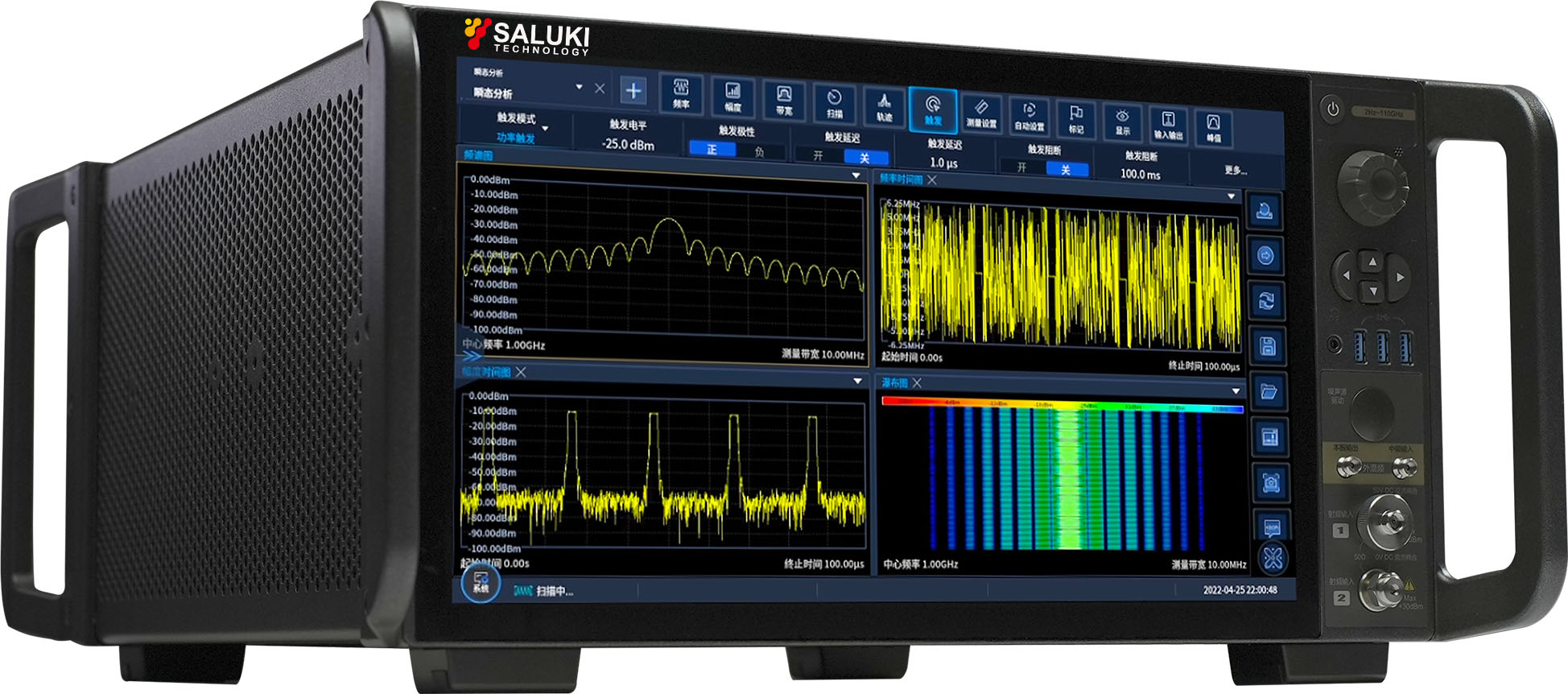

S4082 Series Signal/ Spectrum Analyzer

S4082 series signal/spectrum analyzer is the new flagship product of Saluki. It has excellent RF performance in terms of displaying average noise level, phase noise, intermodulation rejection, dynamic range, amplitude accuracy and test speed. It has powerful spectrum analysis, standard-compliant power measurement suite, I/Q analysis, transient analysis, pulse signal analysis, real-time spectrum analysis, analog modulation analysis,
vector signal analysis and many other measurement functions.

Good expansion capability can build test system or secondary development through a variety of digital and analog output interfaces.

Up to 2GHz analysis bandwidth, with the corresponding analysis options, to meet the demanding needs of signal and equipment testing in mobile communications, self-driving radar, satellite communications, Internet of Things, aerospace and defense, etc.

Key Features

Wide band coaxial coverage from 2Hz to 110GHz (external spread spectrum up to 750GHz)

Phase noise -134dBc/Hz @10kHz offset at 1GHz carrier

Built-in 2GHz analysis bandwidth

I/Q data stream interface with 2GHz bandwidth

Rich wireless communication signal analysis function

Powerful satellite RF test function

Comprehensive radar signal analysis function

15.6-inch multi-mode co-display with multi-touch operation

  • Comprehensive Spectrum Analysis Capability

    S4082 series signal/spectrum analyzer has a wealth of spectrum parameters test function, can provide more comprehensive and detailed analysis results.



    •  Support frequency sweep and FFT sweep

    •  Rich trace and detector type

    •  Support waterfall chart display of historical traces

    •  Sweep points number can be arbitrarily selected among 101- 30001

    •  6 wave-detection modes, 3 average types

    •  Support time gate measurement

    •  One-click power measurement kit

  • Excellent RF & Reception Performance

    •  Ultra-wide frequency coverage



    •  110GHz full-band image suppression



    •  Excellent low frequency signal measurement capability



    •  Ultra-low DANL performance



    •  Excellent phase noise performance

  • Rich Signal Analysis Capabilities for Wireless Communications

    S4082 series signal/spectrum analyzer provides fast, intuitive testing of signal characteristics for a wide range of wireless communication standards, including 5G NR, LTE, NB-IoT, WCDMA, GSM, and more.

    • 5G NR Signal Analysis

    • LTE, NB-IoT, WCDMA, GSM signal analysis

    • Analysis of Out-of-Band Characteristics of Wireless Communication Signals

  • Powerful Satellite RF Testing Capabilities

    S4082 series signal/spectrum analyzers have high-performance satellite RF test functions, which can be used for the R&D and production process testing of satellite payloads, systems, and components.

    • Multi-Carrier Group Delay Measurement

    • Noise Power Ratio Measurement

Frequency Range

S4082B: 2 Hz to 8.4 GHz,

S4082D: 2 Hz to 18 GHz,

S4082E: 2 Hz to 26.5 GHz,

S4082F: 2 Hz to 45 GHz,

S4082H: 2 Hz to 50 GHz,

S4082L: 2 Hz to 67 GHz,

S4082N: 2 Hz to 90 GHz

S4082P: 2 Hz to 110 GHz

10MHz Precise Frequency Reference

•  Frequency accuracy: ± (last calibration date × aging rate + temperature stability + calibration accuracy)

•  Aging rate: ± 5×10-10/day

•  Temperature stability: ± 1.5×10-8

Span

•  Range: 0Hz (zero span), 10Hz – the highest frequency of the model

•  Accuracy: ± (0.1%× frequency span+ frequency span/ (sweep points number 1))

Sweep Time Range

•  Span≥10Hz: 3us – 16000s

•  Span=0Hz: 3us – 16000s

RBW

0.1Hz-20MHz (1, 2 ,3 ,5, steps)

Conversion uncertainty: ±0.10dB; 1Hz to 3MHz (1,2,3,5 steps)

Conversion uncertainty: ±0.30dB; 5MHz to 20MHz (1,2,3,5 steps)

VBW

1Hz to 20MHz (1,2,3,5 steps)

Signal Analysis Bandwidth

Standard: 10MHz

Option H38-40: 40MHz

Option H38-200: 200MHz

Option H38-400: 400MHz

Option H38-600: 600MHz

Option H38-1200: 1.2GHz

Option H38-2000: 2GHz

SSB Phase Noise (Carrier 1GHz, 20℃ -30℃)

Feature

•  -107 dBc/Hz @ 100Hz offset

•  -125 dBc/Hz @ 1kHz offset

•  -134 dBc/Hz @ 10kHz offset

•  -136 dBc/Hz @ 100kHz offset

•  -142 dBc/Hz @ 1MHz offset

•  -152 dBc/Hz @ 10MHz offset

Typical

•  -115 dBc/Hz @ 100Hz offset

•  -128 dBc/Hz @ 1kHz offset

•  -135 dBc/Hz @ 10kHz offset

•  -137 dBc/Hz @ 100kHz offset

•  -140 dBc/Hz @ 1MHz offset

•  -154 dBc/Hz @ 10MHz offset

Trigger Source

Free, Line, video, external 1, external level 2, burst RF, timer

Trigger Detector

Normal, positive peak, negative peak, sample, video average, power average, voltage average

Residual Response

≤-98dBm

1MHz ≤ f ≤8GHz

RF Port 1

Power Supply

AC 100 – 240V: 50 – 60Hz

Dimension

Excluding the handle, brackets: (426±4)mm × (222±4)mm × (450±4)mm

Weight

About 35kg (different configuration cause different weight)

Main Machine

Module No. Item Description
S4082B Signal/ Spectrum Analyzer 2 Hz to 8.4 GHz
S4082D Signal/ Spectrum Analyzer 2 Hz to 18 GHz
S4082E Signal/ Spectrum Analyzer 2 Hz to 26.5 GHz
S4082F Signal/ Spectrum Analyzer 2 Hz to 45 GHz
S4082H Signal/ Spectrum Analyzer 2 Hz to 50 GHz
S4082L Signal/ Spectrum Analyzer 2 Hz to 67 GHz
S4082N Signal/ Spectrum Analyzer 2 Hz to 90 GHz
S4082P Signal/ Spectrum Analyzer 2 Hz to 110 GHz

Options

Module No. Item Description
S4082-H02 Auxiliary IF output Output second IF signal, the frequency is 425MHz,750MHz,1.5GHz
S4082-H08 Wideband Log detect output Output a logarithmic detection signal reflecting the level characteristics of the input signal.
S4082-H11 10 Gigabit Ethernet Control and Data Interface Optical fiber based 10 gigabit network interface.
S4082-H19-2T Local memory expansion Supports up to 2TB storage memory (electronic hard disk)
S4082-H19-4T Local memory expansion Supports up to 4TB storage memory (electronic hard disk)
S4082-H33-08 Electronic attenuator Frequency range: 9kHz to 8GHz, attenuation range: 30dB, in 0.5dB steps
S4082-H34-08 Low-noise preamplifier The preamplifier is selected according to the frequency upper limit of the signal analyzer Example: S4082B frequency upper limit is 8.4GHz, Pre-amplifier need to select option H34-08
S4082-H34-18 Low-noise preamplifier The preamplifier is selected according to the frequency upper limit of the signal analyzer. Example: S4082D frequency upper limit is 18GHz, Pre-amplifier need to select option H34-18.
S4082-H34-26 Low-noise preamplifier The preamplifier is selected according to the frequency upper limit of the signal analyzer. Example: S4082E frequency upper limit is 26.5GHz, Pre-amplifier need to select option H34-26.
S4082-H34-45 Low-noise preamplifier The preamplifier is selected according to the frequency upper limit of the signal analyzer. Example: S4082F frequency upper limit is 45GHz, Pre-amplifier need to select option H34-45.
S4082-H34-50 Low-noise preamplifier The preamplifier is selected according to the frequency upper limit of the signal analyzer. Example: S4082H frequency upper limit is 50GHz, Pre-amplifier need to select option H34-50.
S4082-H34-67 Low-noise preamplifier The preamplifier is selected according to the frequency upper limit of the signal analyzer. Example: S4082L frequency upper limit is 50GHz, Pre-amplifier need to select option H34-67.
S4082-H34A-08 Low-noise preamplifier Only S4082B mainframe can be configured, and S4082-H34-08 is not optional at the same time.
S4082-H36 Pre-selector Bypass The tracking pre-selector in the bypass receiving channel.
S4082-H38-40 External frequency extender To extend the frequency range using external frequency mixing method. This option provides LO output and IF input, as well as signal recognition ability. (Notes: this option can be selected when the main unit is not S4082B: the extended frequency range depends on the selected extension modules; the frequency extension module needs to buy additionally)
S4082-H38-200 Real-time spectrum analysis This option provides digital phosphor spectrum and seamless waterfall, including frequency template trigger, which can support real-time spectrum analysis of 200MHz bandwidth.
S4082-H38-400 Real-time spectrum analysis This option provides digital phosphor spectrum and seamless waterfall, including frequency template trigger, which can support real-time spectrum analysis of 400MHz bandwidth.
S4082-H38-600 Real-time spectrum analysis This option provides digital phosphor spectrum and seamless waterfall, including frequency template trigger, which can support real-time spectrum analysis of 600MHz bandwidth.
4082-H38-1200 Real-time spectrum analysis This option provides digital phosphor spectrum and seamless waterfall, including frequency template trigger, which can support real-time spectrum analysis of 1.2GHz bandwidth.
S4082-H48 Noise figure analysis Provide noise source drive and noise figure measurement function. S4082N/P only support maximum 67GHz noise figure measurement.(note: the option need to select H34 low-noise pre-amplifier option and corresponding 1660X noise source to finish the noise figure measurement.)
S4082-H96 User manual (paper publication) Provide a detailed user manual in hard copy
S4082-H97 Mounting rack Handles and accessories for S4052 mounting on standard racks
S4082-H99 Aluminum transportation case High-strength lightweight aluminum transportation case, with handle and roller, convenient for transportation
S4082-S02 Noise power ratio measurement Provide noise power ratio parameters measurement
S4082-S04 Phase noise measurement SSB phase noise curves and single-point phase noise measurement
S4082-S05 EMC Pre-Compliance Provide EMC pre-compliance measurement function
S4082-S10 Transient analyzer To realize the measurement & analysis of transient parameters, spectrum, and time-varying characteristics of signals, support playback of the recorded data.
S4082-S12 Vector signal analyzer This option provides flexible demodulation functions of multiple single-carrier digital modulation signals. It can provide vector charts, constellation diagrams, eye diagrams, spectrum diagrams, etc., to analyze the characteristics of the modulation signal. The modulation error of the signal can be obtained by demodulation, which helps to judge the cause of the signal error
S4082-S13 Pulse signal analyzer Automatic measurement on time, level and modulation parameters of pulse waveform and statistical analysis of pulse sequence
S4082-S16 Multicarrier group delay measurement Provides absolute and relative group delay measurement capability for wideband signals
S4082-S40 WLAN 802.11a/b/g measurement Broadband wireless local area network protocol physical layer test (802.11a/ b/g), covering radio frequency, modulation analysis, and modulation quality testing.
S4082-S40N WLAN 802.11n measurement Broadband wireless local area network protocol physical layer test (802.11n), covering radio frequency, modulation analysis, and modulation quality testing
S4082-S40AC WLAN 802.11ac measurement Broadband wireless local area network protocol physical layer test (802.11ac), covering radio frequency, modulation analysis, and modulation quality testing.
S4082-S40AX WLAN 802.11ax measurement Broadband wireless local area network protocol physical layer test (802.11ax), covering radio frequency, modulation analysis, and modulation quality testing.
S4082-S46D 5G NR Downlink signal measurement Support 5G NR DOWNlink signal demodulation, EVM, spectrum flatness, time alignment error; Support ACP, spectrum emission template, transmit on/off, CCDF and other power measurement; Support multiple bandwidth and multiple TM.
S4082-S46U 5G NR Upling signal measurement Support 5G NR UPlink signal demodulation, EVM, spectrum flatness, time alignment error; Support ACP, spectrum emission template, transmit on/off, CCDF and other power measurement; Support multiple bandwidth and multiple TM.

USB Power Sensor Option (Requires S4082-S01 option)

Module No. Item Description
S87230 USB CW Power Sensor 9kHz~6GHz Power Sensor
S87231 USB CW Power Sensor 10MHz~18GHz Power Sensor
S87232 USB CW Power Sensor 50MHz~26.5GHz Power Sensor
S87233 USB CW Power Sensor 50MHz~40GHz Power Sensor

Spectrum Analyzer Extender Option (Requires S4082-H40 option)

Module No. Item Description
S82407NA Spectrum Analyzer Extender 50GHz~75GHz
S82407NC Spectrum Analyzer Extender 60GHz~90GHz
S82407PA Spectrum Analyzer Extender 75GHz~110GHz
S82407QA Spectrum Analyzer Extender 90GHz~140GHz
S82407QB Spectrum Analyzer Extender 110GHz~170GHz
S82407RA Spectrum Analyzer Extender 140GHz~220GHz
S82407SA Spectrum Analyzer Extender 170GHz~260GHz
S82407S Spectrum Analyzer Extender 220GHz~325GHz
S82407A Spectrum Analyzer Extender 260GHz~400GHz
S82407R Spectrum Analyzer Extender 325GHz~500GHz
S82407U Spectrum Analyzer Extender 500GHz~750GHz

Noise Source Option (Requires S4082-H48 and S4082-H43 option)

Module No. Item Description
S16603DB Noise Source 10MHz~18GHz
S16603EB Noise Source 10MHz ~ 26.5GHz
S16603FB Noise Source 10MHz~40GHz
S16603HB Noise Source 10MHz~50GHz
S16604DB Smart Noise Source 10MHz~18GHz
S16604EB Smart Noise Source 10MHz~26.5GHz
S16604FB Smart Noise Source 10MHz~40GHz
S16604HB Smart Noise Source 10MHz~50GHz
