Saluki’s S32156 Waveguide Calibration Kit can be used for standard millimeter wave vector network analyzers.

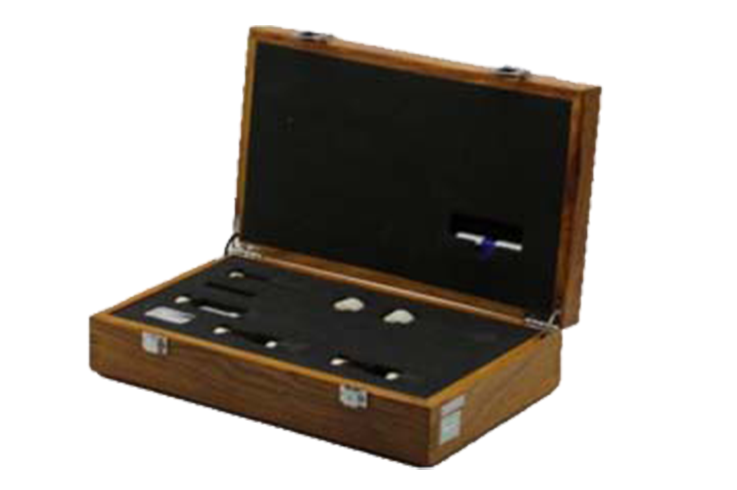

S32156 Waveguide Calibration Kit
Key Features
Frequency Range: 50 GHz to 75 GHz
Connector Type: WR15
Load VSWR: ≤1.06
Adapter waveguide assembly VSWR: ≤1.065
| Frequency | 50 GHz to 75 GHz |
|
| Specifications |
|
|
| Temperature | · Working Temperature: 0℃~+40℃ · Storage Temperature: -40℃~+70℃ |
Main Module
| Module No. | Item | Description |
| S32156 | 5mm Waveguide Calibration Kit | Frequency range: 50 GHz to 75 GHz, Connector type: WR15. |
Standard Package
| No. | Item | Qty. |
| 1 | Fixed load | 1 |
| 2 | Sliding load | 1 |
| 3 | Adapter waveguide assembly | 2 |
| 4 | Short | 1 |
| 5 | Offset | 1 |
| 6 | Bolts | 1 |
| 7 | Wrench | 1 |
| 8 | Data disk | 1 |
