S1435 Series Signal Generator

Overview Specifications Ordering Resources

S1435 series signal generator achieves balance in terms of performance, economy and volumetric weight. It responds fast and switches to another frequency in only 1ms, which shortens the test time and improves test efficiency, meeting the needs of massive data testing. In addition, it also has excellent analog modulation and pulse modulation functions. By adopting advanced frequency synthesis and RF channel signal processing technology, it can achieve high performance while reducing the cost.

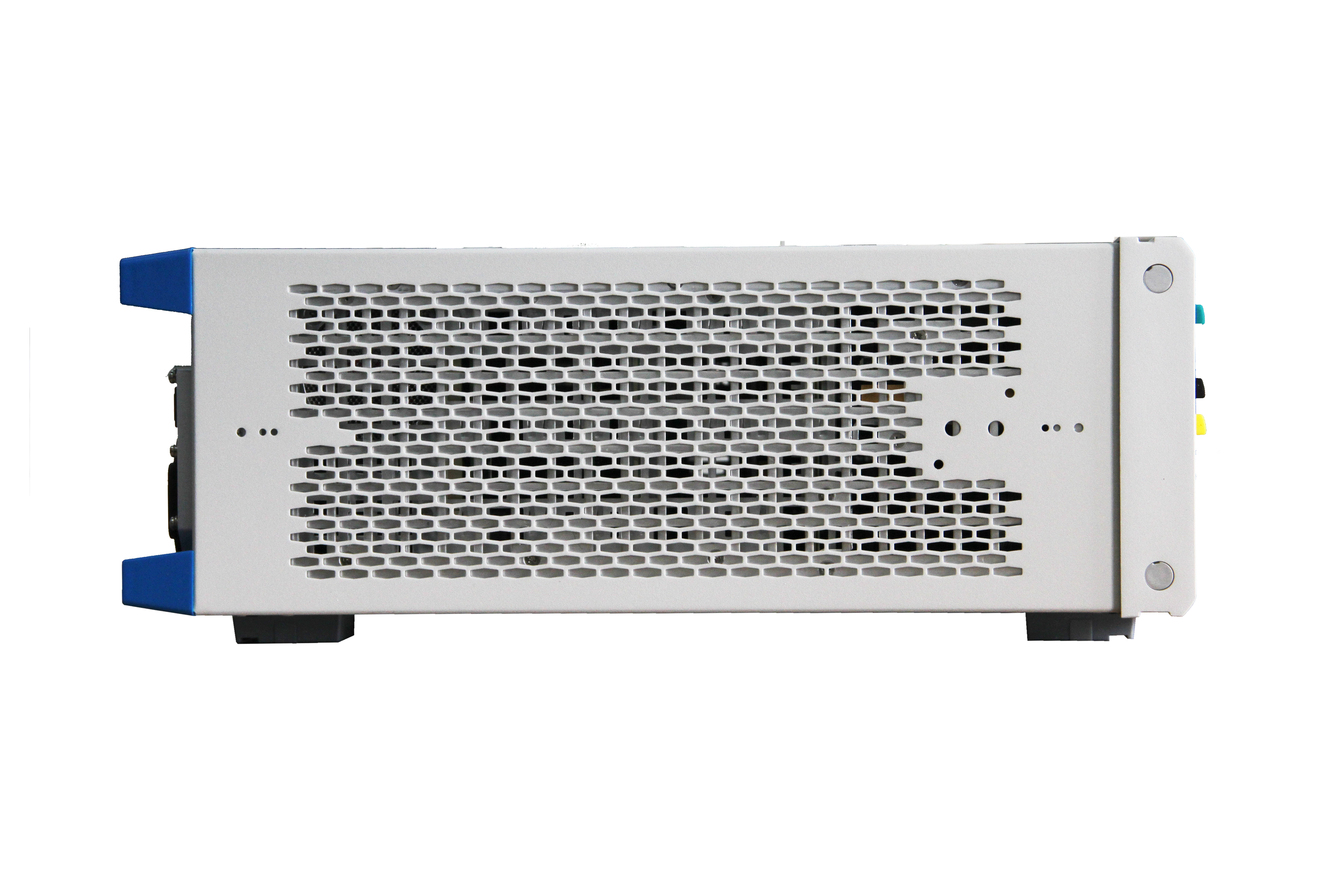

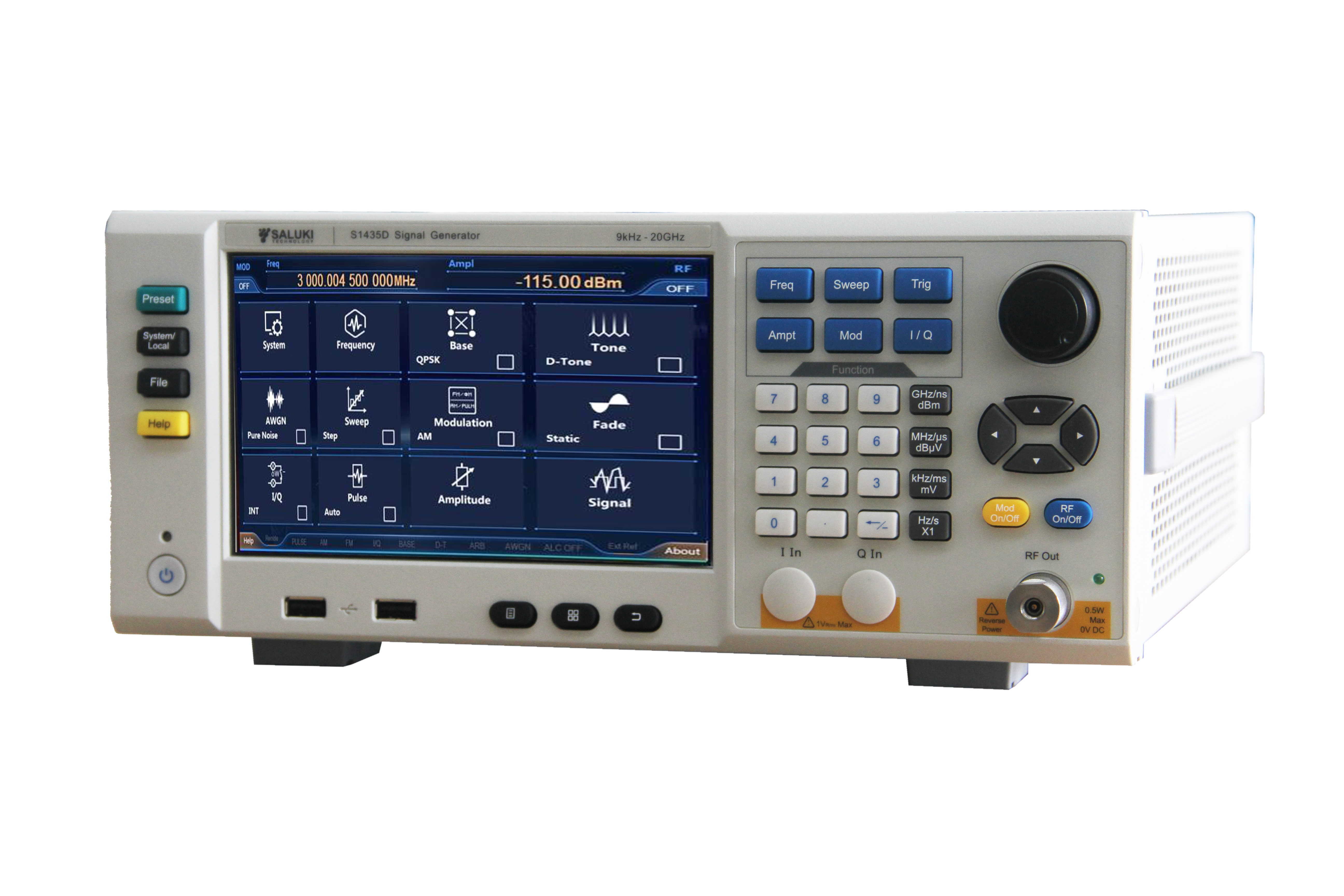

Besides, S1435 series signal generator is equipped with a 7-inch high-sensitivity LED touch screen, and supports operation by touch screen, panel buttons, rotary knobs, external mouse and keyboard, etc., which fully upgrades the users’ operation experience. It adopts portable 3U chassis structure and is featured by small size and light weight. The S1435 series signal generator can meet both the test requirements for high performance in the R&D phase and the test requirements for high efficiency in the production phase.

Key Features

Wide frequency range from 9 kHz to 40 GHz

High output power up to 20dBm@20GHz

Power dynamic range greater than 150dB

Excellent phase noise of 1GHz@10kHz: -136dBc/Hz

High performance pulse modulation

Built-in multi-function function generator

7-inch high-sensitivity LED touch screen, small size and light weight

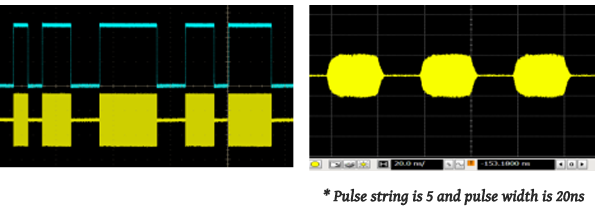

High Performance Pulse Modulation

S1435 series signal generator provides Narrow Pulse Modulation Option (H04).

When the option H04 with a minimum pulse width of 20ns, a pulse width range of 20ns-42s-10ns and a step of 10ns is selected, it supports various triggering modes such as gating and external triggering. It’s also equipped with the pulse string required in radar test.

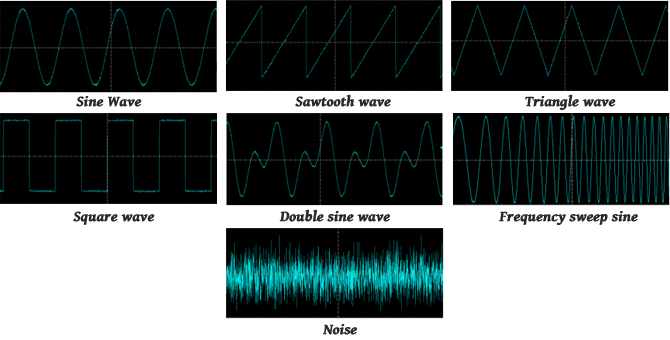

Multi-function Function Generator

The multi-function function generator consists of seven waveform generators for generating AM/FM/ΦM modulated signals and low-frequency output signals. Two waveform generators can generate a dual-tone modulated signal by internal addition and are used for AM/FM/ΦM.

The seven waveform generators include two standard function generators, one double-function generator, one scan function generator, two noise generators, and one DC generator.

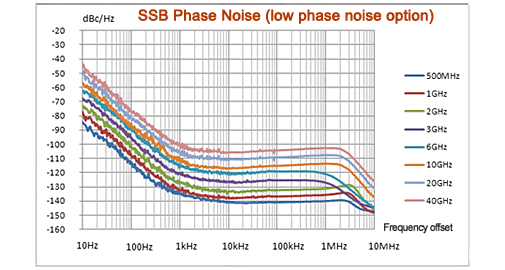

Excellent SSB Phase Noise

S1435 series signal generator provides Low Phase Noise Option (H06).

1435 series provides two steps of phase noise for users. The standard phase noise is measured at -101dBc/Hz (10GHz @10kHz), and the phase noise can be as low as -116dBc/Hz (10GHz @10kHz) when the low phase noise option is selected.

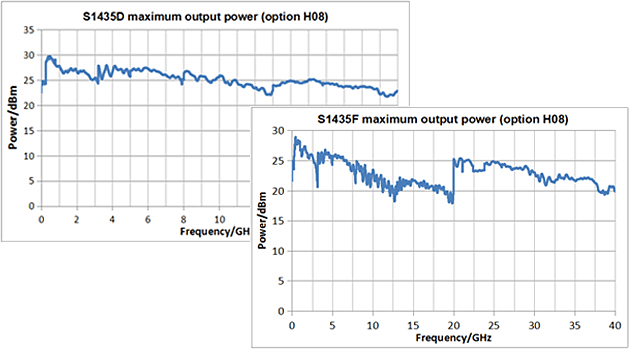

High Output Power

S1435 series signal generator provides High Power Output Option (H08).

When option H08 is selected, the measured value of the full-band output power of the 1435A/B/C/D series signal generator can be above 20 dBm and the full-band output power of the S1435F series signal generator can be above 17 dBm.

In the test where high-power excitation signals are required, the 1435 series signal generator can be used to obtain the required test signal without an external amplifier.

Frequency Range	S1435A: 9 kHz to 3 GHz, S1435B: 9 kHz to 6 GHz, S1435C: 9 kHz to 12 GHz, S1435D: 9 kHz to 20 GHz, S1435F: 9 kHz to 40 GHz
Frequency Resolution	0.001 Hz
Frequency Switching Time	≤ 1ms (typical)
Time Base Aging Rate (typ.)	Standard: ±5×10^-7/year (after continuous switch-on for 30 days) High stability time base option H10: • ±5×10^-8/year (after continuous switch-on for 30 days), • ±5×10^-10/day(after continuous switch-on for 30 days)
Reference Output	• Frequency: 10MHz • Power: >+4dBm, to 50Ω load
Reference Input	• Frequency: 1MHz – 50MHz, step 1Hz • Power: 0dBm to +7dBm, impedance 50Ω
Scanning Mode	Step scan, List scan
Scan Dwell Time	100μs – 100s
Minimum Output Power	• Standard: -15dBm (can be set -20dBm) • Option H01: -110dBm (can be set -135dBm)
Maximum Output Power (Standard)	S1435A/B: • 9kHz ≤ f ≤ 3GHz: 18dBm • 3GHz < f≤ 5GHz: 16dBm • 5GHz < f≤ 6GHz: 15dBm S1435C/D: • 9kHz ≤ f ≤ 3GHz: 16dBm • 3GHz < f≤ 20GHz: 15dBm S1435F: • 9kHz ≤ f ≤ 3GHz: 14dBm • 3GHz < f≤ 17GHz: 13dBm • 17GHz < f≤ 40GHz: 11dBm
Maximum Output Power (Option H08)	S1435A/B: • 9kHz ≤ f ≤ 3GHz: 22dBm • 3GHz < f≤ 5GHz: 20dBm • 5GHz < f≤ 6GHz: 18dBm S1435C/D: • 9kHz ≤ f ≤ 3GHz: 21dBm • 3GHz < f≤ 20GHz: 20dBm S1435F: • 9kHz ≤ f ≤ 3GHz: 20dBm • 3GHz < f≤ 17GHz: 17dBm • 17GHz < f≤ 40GHz: 15dBm
Power Resolution	0.01 dB
VSWR (typ.)	• 9kHz ≤ f ≤ 3GHz: <1.7 • 3GHz < f ≤ 13GHz: <1.6 • 13GHz < f ≤ 20GHz: <1.8 • 20GHz < f ≤ 40GHz: <1.6
Maximum Rerverse Power	0.5W (0V DC) (rated value)
Haimonic Wave (at +10dBm)	• 9kHz ≤ f ≤ 10MHz: < -23dBc • 10MHz < f ≤ 2GHz: < -30dBc • 2GHz < f ≤ 6GHz: < -30dBc (S1435B) • 2GHz < f ≤ 20GHz: < -55dBc • 20GHz < f ≤ 40GHz: < -50dBc (typ.)
Sub-harmonic Wave (at +10dBm)	• 9kHz ≤ f ≤ 6GHz: None • 6GHz < f ≤ 12GHz: < -60dBc • 12GHz < f ≤ 24GHz: < -55dBc • 24GHz < f ≤ 40GHz: < -50dBc
Non-Harmonic Wave (Standard)	• 9kHz ≤ f ≤ 250MHz: < -54dBc • 250MHz < f ≤ 3GHz: < -62dBc • 3GHz < f ≤ 6GHz: < -56dBc • 6GHz < f ≤ 12GHz: < -50dBc • 12GHz < f ≤ 24GHz: < -44dBc • 24GHz < f ≤ 40GHz: < -38dBc (at 0dBm, 10kHz Frequency Offset)
Non-Harmonic Wave (Low Phase Noise Option H06)	• 9kHz ≤ f ≤ 250MHz: < -60dBc • 250MHz < f ≤ 3GHz: < -77dBc • 3GHz < f ≤ 6GHz: < -71dBc • 6GHz < f ≤ 12GHz: < -65dBc • 12GHz < f ≤ 24GHz: < -59dBc • 24GHz < f ≤ 40GHz: < -53dBc (at 0dBm, 10kHz Frequency Offset)
SSB Phase Noise (Carrier 1GHz, at +10dBm)	Standard: • ≤-83 dBc/Hz @ 100Hz offset • ≤-115 dBc/Hz @ 10kHz offset Low Phase Noise Option H06: • ≤-83 dBc/Hz @ 100Hz offset • ≤-113 dBc/Hz @ 1kHz offset • ≤-132 dBc/Hz @ 10kHz offset • ≤-132 dBc / Hz @ 100kHz offset
Frequency Modulation (Option H02)	• Maximum frequency offset: N × 16MHz (N is the number of fundamental harmonic wave) • Accuracy (1kHz modulation rate, frequency offset: N × 500kHz): ± (2% × set frequency offset + 20Hz) • Modulation rate (3dB bandwidth, frequency offset: N × 500kHz): DC – 7MHz • Distortion (1kHz rate, frequency offset: N × 500kHz): <0.4%
Phase Modulation (Option H02)	• Maximum phase offset: N × 16rad (N is the number of fundamental harmonic wave) • Accuracy (1kHz modulation rate, frequency offset: N × 500kHz): ± (2% × set phase offset + 0.01rad) • Modulation rate (3dB bandwidth, phase offset: N × 8rad): DC – 1MHz • Distortion (1kHz modulation rate, phase offset: N × 8rad): <0.4%
Amplitude Modulation (Option H02)	• Maximum depth: >90% • Modulation rate: (1kHz modulation rate, 30% modulation depth): ± (4% × set depth +1%) • Modulation rate (bandwidth: 3dB; modulation depth: 30%; frequency test points: 1GHz, 5GHz, 20GHz, 40GHz): DC – 100kHz • Distortion: (1kHz modulation rate, linear mode, total harmonic distortion, 30% modulation depth): <2%
Pulse Modulation (Option H03)	• Switching ratio: >80dB • Rise and fall time: <10ns • Minimum pulse of internal fixed amplitude: 1μs • Minimum pulse of non-fixed amplitude: 100ns
Narrow Pulse Modulation (Option H04)	• Switching ratio: >80dB • Rise and fall time: <10ns • Minimum pulse of internal fixed amplitude: 1μs • Minimum pulse of non-fixed amplitude: 20ns
Internal Analog Modulation Signal Generator (Option H02)	Providing three independent signals for frequency/phase modulation, amplitude modulation and low frequency output signals. • Waveform: sine wave, square wave, triangle wave, sawtooth wave • Frequency range: sine wave 0.1Hz – 10MHz, square wave, triangle wave, sawtooth wave 0.1Hz – 1MHz • Frequency resolution: 0.1Hz • Low frequency output: amplitude 0-5V peak (rated value), to 50Ω load
Internal Pulse Generator (Option H03)	• Pulse width: 20ns – (42s-10ns) (rated value) • Pulse period: 40ns – 42s (rated value) • Resolution: 10ns
Multi-Function Function Generator (Option H05)	The Multi-function generator consists of 7 waveform generators. The generator can be set separately or five generators can be set simultaneously by using the AM, FM/ΦM and the composite modulation features in the low-frequency output.

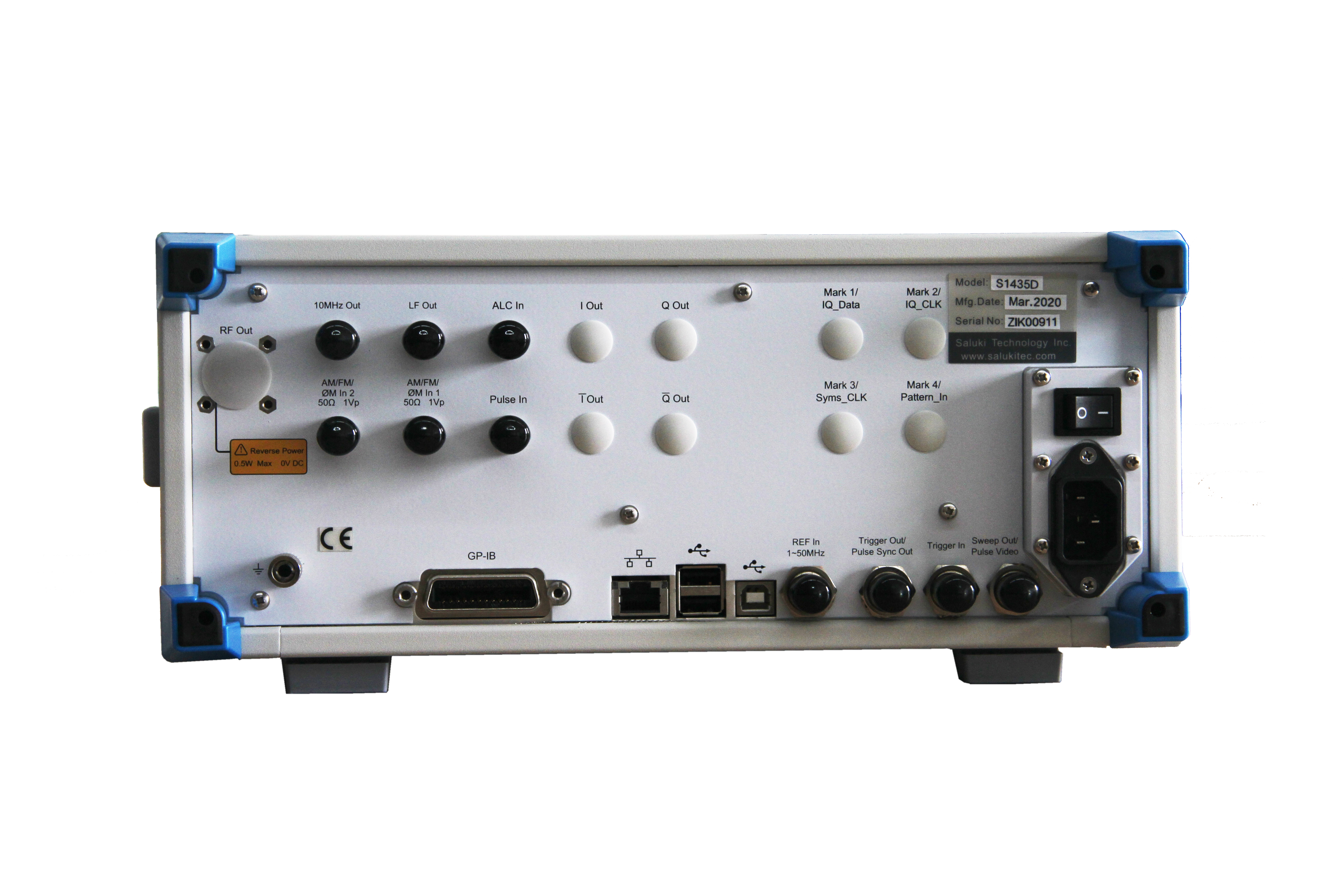

RF Output Port	• S1435A/B/C: N type (female), impedance 50Ω • S1435D: 3.5mm (male), N type (female) (option H91), impedance 50Ω • S1435F: 2.4mm (male), impedance 50Ω
Power Consumption	< 300W
Dimension (max.)	• 330 (W) × 147 (H) × 397 (D) mm (excluding the handle) • 420 (W) × 147 (H) × 445 (D) mm (including the handle)
Weight	< 12kg (the weight varies with the model and option configuration)
Power Supply	100 – 120VAC, 50 – 60Hz; or 200 – 240VAC, 50 – 60Hz (self-adaptive)
	(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No.	Item	Description
S1435A	Signal Generator	9 kHz to 3 GHz
S1435B	Signal Generator	9 kHz to 6 GHz
S1435C	Signal Generator	9 kHz to 12 GHz
S1435D	Signal Generator	9 kHz to 20 GHz
S1435F	Signal Generator	9 kHz to 40 GHz

Options

Module No.	Item	Description
S1435-H01	115dB programmable step attenuator	Expand the output power dynamic range
S1435-H02	Analog modulation	Increase analog modulation functions, including AM, FM, ΦM, and low frequency output
S1435-H03	Pulse modulation	Increase the pulse modulation function with a minimum pulse width of 100ns
S1435-H04	Narrow pulse modulation	Increase the pulse modulation function with a minimum pulse width of 20ns
S1435-H05	Multi-function function generator	Add a richer analog modulation signal format. (Note: The H05 option is available after the H02
S1435-H06	Low phase noise	Optimize phase noise, 10GHz@10kHz: -113dBc/Hz
S1435-H08	High power output	Increase the maximum output power
S1435-H10	High stability time base option	Internal time base aging rate
S1435-H50	Calibration certificate	Instrument calibration
S1435-H91	Type-N connector for RF output	Type-N connector for RF output, applicable to S1435D
1435-H92	RF output moved to the rear panel	RF output on rear panel
S1435-H93	Portable handle	3U handle
S1435-H94	Rack mount kit	Mounting kit for the upper cabinet
S1435-H95	Aluminum alloy transport case	High-strength lightweight aluminum alloy transport case with handle and universal roller for easy transportation
S1435-H98	English version	/
