Saluki NMD test port adapters is a ruggedized test port connector used for stable connection to VNA or any NMD style test port.These adapters can provide connection between or adapt to cable assemblies and devices.The rugged construction makes the connection very stable and repeatable.

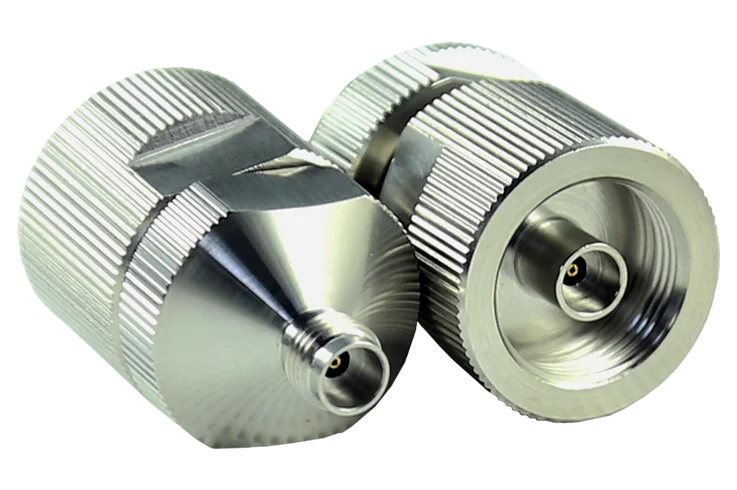

NMD 2.4mm Test Port Adapters
Key Features
Frequency range up to 50GHz
Mulitiple connector types
Maximum VSWR 1.25:1
Durability >2000 cycles
RoHS compliant
| Frequency Range | DC – Max. 50GHz |
| VSWR (Max.) | 1.25:1 |
| Impedance | 50Ω |
| Body Type | Straight |
| Housing | SU303, Polished & Passivated |
| Center Conductor | Beryllium copper, Gold plated |
(Note: For other port configuration, please send email to sales@salukitec.com) |
Main Module
| Module No. | Item | Description |
| SA40FM(N2.4-N2.92) | Test Port Adapter | DC-40GHz, Port 1: NMD 2.4mm female, Port 2: NMD 2.92mm male |
| SA50FF(N2.4-2.4) | Test Port Adapter | DC-50GHz, Port 1: NMD 2.4mm female, Port 2: 2.4mm female |
